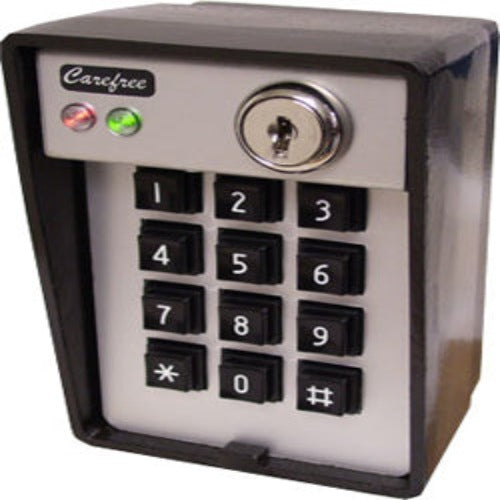

1050X Outdoor “All Weather” Digital Entry Keypad | CAR-1050X
$284.29
1050X Outdoor “All Weather” Digital Entry Keypad | CAR-1050X
The Model 1050X offers the same features and operating parameters as the 1050A. The only differences are the Powder-Coated Cast Aluminum Housing and the Heavy Duty Polymer Keyboard which make this unit ideal for locations that experience high humidity.
Self contained access keypad ideal for airports, parking lots, commercial buildings, warehouses, gates and overhead doors.
Features
Two relays
Microprocessor based memory
Surge protection built in
LED status indicators
Audio tone
Easy to program
Programmable through keypad
Built in timer for remote exit door switch
Latching relay to hold gates/doors open
Automatic voltage sensor – 10V to 30V AC or DC
Highly vandal resistant
Compact and easy to install
Full sealed keyboard
No code number loss with power failure
Nightlight that brightens with touch of keypad
Technical Information
Operating Voltage: 10-30 Volts AC or DC
Current Draw
Stand By: 10mA @ 12 VDC
Relay Active: 100mA @ 12 VDC
Number of Relays: Two (2)
Relay Output
Relay #1: 5A @ 28 VDC, FORM C, COM./NO./NC.
Relay #2: 1A @ 28 VDC, FORM C, COM./NO./NC.
Remote Timed Exit Switch: N.O. Switch
Temperature: -20 F to +140 F
With Built In Heater: -40 F
Optional Features:
Heat System – All 1050 models are available with a 24V AC heater system, on/off switch and control light
High Security – Keypads are available with a separate relay logic box, to be mounted inside a protected area. When wires are cut or shorted on the keypad the door or gate will not operate.
2nd Relay:
Opening or closing a 2nd door or gate
Sending a duress signal
Sending a signal when gate or door is opening
Shutting an alarm switch on door or gate
Turning on or off surveillance camera
Turning on a warning strobe light and/or siren when a door or gate is closing.
Variable relay output time 1 – 120 seconds
Manuals
1050X Outdoor “All Weather” Digital Entry Keypad Datasheet
1050X Outdoor “All Weather” Digital Entry Keypad Installation & Programming Instructions
