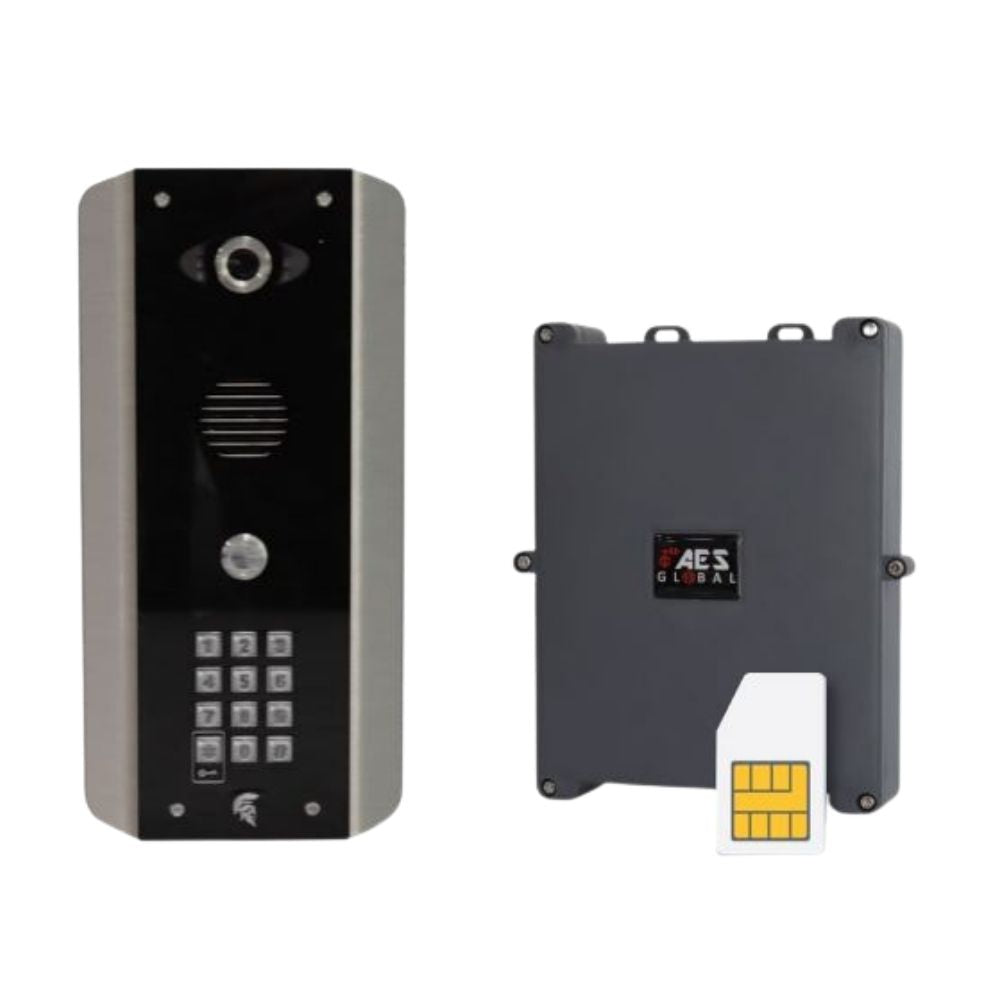

AES Wall Mount IP / 4G Intercom + Keypad | AES-PRAE-4G-ABK-US

AES Wall Mount IP / 4G Intercom + Keypad | AES-PRAE-4G-ABK-US
A modern wall mount IP / 4G intercom with keypad that comes in a blue back lighting effect, marine grade and brushed stainless steel construction with black gloss acrylic faceplate. Panels available with and without keypad. Pedestal adaptor plate available for gooseneck mounting (sold separately, ABK model only).
Features

Curved architectural style.
The illuminated call button and back lighting.
Built-in the illuminated keypad.
Complete with wall mount antenna, and power supply.
Security screw access
HD camera with video motion sensor
Colour camera with night vision and IR cut filter
Infra-red night vision illuminators
Waterproof Mylar 1.5W speaker
Illuminated push button
Optional illuminated keypad
High gain Wi-Fi antenna 60-degree transmission to concentrate & extend range
Weatherproof for outdoor use
4G MODEM – add 4G modem to Praetorian Guard IP Intercom for 4G access point
System can work with smartwatches however notifications may very due to smartwatch brand & capabilities
Events log for Keypad codes, Calls, Voicemails, ProxID’s (past 100)
7-day schedule for auto relay opening
Notifications for calling, relay triggers (prox, keypad codes, in app latching, scheduled latching/unlatching
Sync device time to device
Prox and Keypad codes added via App

Manufacturer’s Warranty Period

2 years

Technical Specifications

Front Panel: Portrait Orientation AB/ABK = 3mm Acrylic on Architectural Design Marine Grade Stainless Steel BS316 Front Plate
Hood Cover (MOD, IMP(K), PED versions): Powder coated Aluminium
Mounting Housing (Backbox): Marine Grade Stainless Steel BS316
Mounting Type:

Surface-Mounted with backlighting
Flush-mounted version sold separately

Call Button: Stainless-steel button with illuminated LED Ring
Weatherproof: IP55
Approvals: CE, FCC
Dimensions: See Overview of Call Points
Operating Temp.: -25 to +55°C / -13 to 131°F
Power Supply: 24V DC
Power Consumption:

IP PCB with Keypad and Prox
Standby = 80mA
Operating = 300mA

Solar Power:

45Watt Solar Panel (minimum) 2x 12V 15AH Batteries connected in series to provide
24V output

Connectors:

LAN (RJ45)2 x Bistable latching relay
Max. 1-28V DC/AC
1A, e.g. for magnetic door lock
External input for push to exit button
24V DC input (+, -)

System Requirements Mobile Device:

Newest iOS on iPhone/iPad
Newest Android on Smartphone/Tablet
Internet: High-Speed Landline Broadband
Internet connection, DSL, cable or fibre optic
No socks or proxy server; minimum suggested upload speed of 1.5mbps
Network: Ethernet Network, with DHCP / WIFI 2.4GHz/5.8GHz (with applicable antenna)

Recommended Installation Height: minimum camera lens height at 145 cm (57 in) (before the installation please determine your optimal installation height)
VIDEO:

Camera: HD 720p, dynamic (VGA –HD)
Lens: 120°(D), 109°(H), 65°(V)IR-capable
Display Resolution:

Switchable in the app by the Admin user
HD resolution: 1280*720
SD resolution: 640*480

Video Codec: H264
Night-Vision: Yes, light sensor, automatic IR-cut filter,5 Infrared LEDs
Storage:

On-Board Micro SD Card (not included)
Max read capacity 32GB
Estimated capacity based on 16GB:
5,592 Video Clips (3MB) {AVI.}
33,500 images (0.5MB) {JPG}
Supports Hot Swapping
Auto overwrites oldest data at 80% capacity
FAT32 Formatting

MOTION SENSOR:

Type: Active
Detection Type: Digital (Pixel-based)Changes of pixilation. This is processed by the CPU identifying any major/minor changes in pixels that is defined by a predetermined algorithm
Range: >5m, depends on environment, distance is fixed

AUDIO:

Audio Components:

Speaker and microphone
Noise reduction and
Echo cancellation (ANR, AEC)

Audio Streaming:

Two-way
Full duplex & half-duplex (switchable in-app)

Audio Codec: PCM/ARAW

NETWORK:

WiFi: IEEE 802.11a/b/g/n/ac
WiFi Security: WPA / WPA2 / WPA3
Frequency Range: 2.4GHz-2.4385GHz; 5.15GHz-5.845GHz
Ethernet: IEEE 802.3
Supported Protocols:

HTTP
HTTPS
SSL/TLS
Bonjour
DNS
RTSP
RTP
TCP
UDP
RTCP
ICMP
DHCP
ARP

4G ROUTER:

Power Supply: 24V DC
Interface: Custom OpenWrt
Antenna Type: SMA
SIM Tray: NANO
LAN Ports: 2 x 10/100Mbps -LAN/WAN
Direct Cable Connection: 8 Pin Spring Connector Terminal Block (Linked to 1 x LAN ports)
GSM Modem Models:

4G Europe -SIM7600E
4G USA -SIM7600A
4G AUS/NZ -SIM7600SA

Frequency Range:

LTE-TDD = B38/B40/B41
LTE-FDD = B1/B3/B5/B7/B8/B20
UMTS/HSPA+ =B1/B5/B8
GSM/GPRS/EDGE = 900/1800MHz

RF Output Power (EIRP):

32.55dBm (GSM 900), 29.73dBm (DCS 1800)
23.77dBm (WCDMA Band I), 23.78dBm (WCDMA Band VIII)
22.79dBm, 22.73dBm, 22.97dBm, 22.35dBm
22.99dBm (LTE B1, B3, B7, B8, B20)
