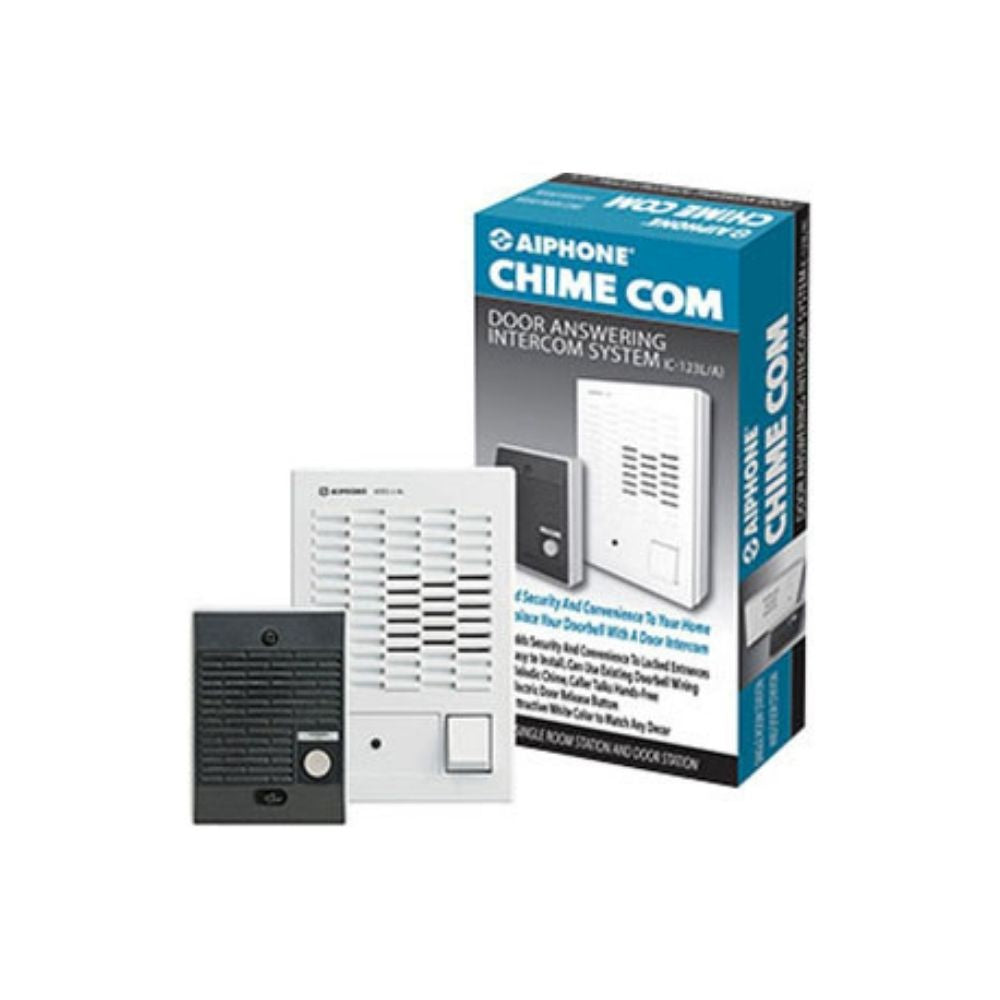

Aiphone ChimeCom Set, 1 Door, 1 Master Audio Answering System | AIP-C-123L/A
$163.99
Aiphone ChimeCom Set, 1 Door, 1 Master Audio Answering System | AIP-C-123L/A
The Aiphone ChimeCom Set, 1 Door, 1 Master Audio Answering System C-123L/A is a communication and door entry system designed for residential and small commercial applications. It allows for two-way audio communication between a visitor at the door station and the resident or user inside the building. Here are some key details and features of the Aiphone C-123L/A ChimeCom Set:
Features
Box set includes C-ML/A and C-D
Chime from door station answered from inside station
Door release
Manufacturer’s Limited Warranty
2 Years
Technical Specifications
Power Consumption: 85mA (6V DC) max.
Output: 100mW
Type of communication: Push-to-talk (simplex)
Door Release Contact: N/O dry contact, 30V AC/DC 1A
Mounting: Wall mount
Wire Type: 2-cond., overall shield – use Aiphone #822202(22AWG) or #821802(18AWG)
Wire Distance: Door Station to farthest Master Station: 245′(22AWG), 590′(18AWG)
Product Literature
Aiphone C-123L/A ChimeCom Set Installation Manual
Aiphone C-123L/A Series Brochure
