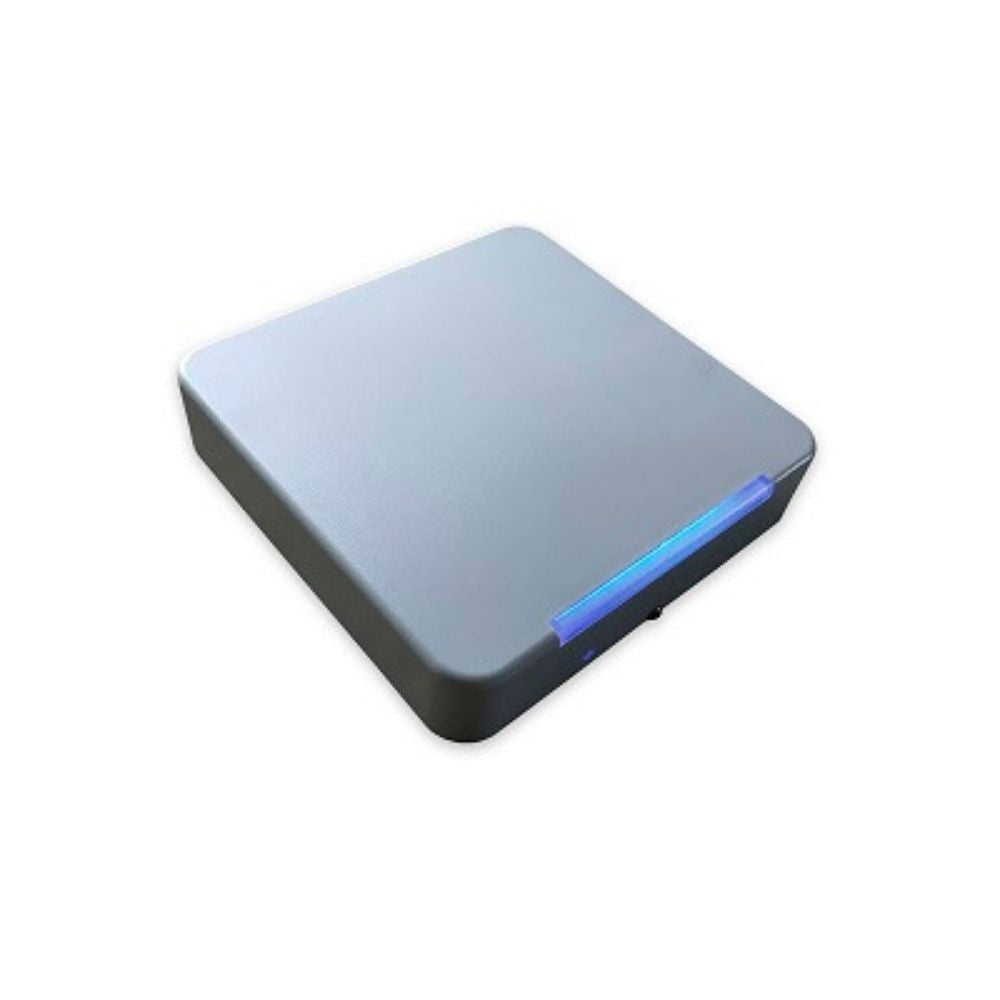

AWID XM-700 Gray Mid Range Reader | AWI-XM-700-0-0
$577.99
AWID XM-700 Gray Mid Range Reader | AWI-XM-700-0-0
AWID’s XM-700 UHF switchplate-type reader is designed with the user in mind: responsiveness, security, and speed. Utilizing these crucial characteristics, we have developed the essential access link for door entry into buildings, or gate entry into specified parking facilities.
Cutting-edge UHF reader technology allows the use of hand-held cards and key tags used for access control into buildings, as well as by drivers at the gate. The cards and key tags are compatible with AWID’s LR-2000, LR-2200, and LR-3000 long-range readers.
Features
People access using UHF cards and tags: The same cards for vehicles and people
Quick access at busy entrances:Â Read range 5 to 7 feet
Easy mounting:Â Fastens on electrical box or wall
Easy wiring for power and data:Â Connects like a proximity reader
Combines car and personal access:Â Interfaces to common access control
The reader needs no programming:Â Â XM-700 reads all AWID UHF cards
Compatible with access systems:Â Standard code formats & interfaces
Visible and audible feedback:Â Reads indicated by LED and beeper
Great appearance in all locations:Â Attractive enclosure, compact dimensions
Technical Features
Reading Distance:Â 5 to 7 feet
Frequency Band:Â 902 to 928 MHz (Frequency-hopping technology)
Power Supply:Â +9 to +12 volts DC supply; rated 1.0 ampere or more; regulated DC output
Communication Protocol:Â Wiegand and RS-232, simultaneous
Code Formats: Programmed in AWID’s UHF credentials (Reads 26-bit to 50-bit codes)
Cable (For Wiegand Interface):Â 22-gauge, 4 wires, stranded, color-coded |Â Overall shielded for both power and data |Â Up to 500 ft long for Wiegand interface
Dimension: 5.5” x 5.5” x 1.125”
Weight:Â 15.2 oz (431 grams)
Material Color:Â ABS 1-part enclosure, gray
Cable (Integrated with Reader):Â 10 conductors, 18 inches long |Â Overall shielded, gray plastic jacket
Mounting:Â On wall or single-gang utility box with a supplied metal backplate
Operating Temperature:Â -31ÂşF to +150ÂşF (-35ÂşC to +65ÂşC)
Operating Humidity:Â 0% to 95% non-condensing
Product Literature
AWID XM-700-0-0 Gray Mid Range Reader Specifications Sheet
AWID XM-700-0-0 Gray Mid Range Reader Installation Guide
