EMX Waterproof Card Reader/Keypad – 2000 Card Users – 8 Keypad Users | EMX-PRX-320

EMX Waterproof Card Reader/Keypad – 2000 Card Users – 8 Keypad Users | EMX-PRX-320

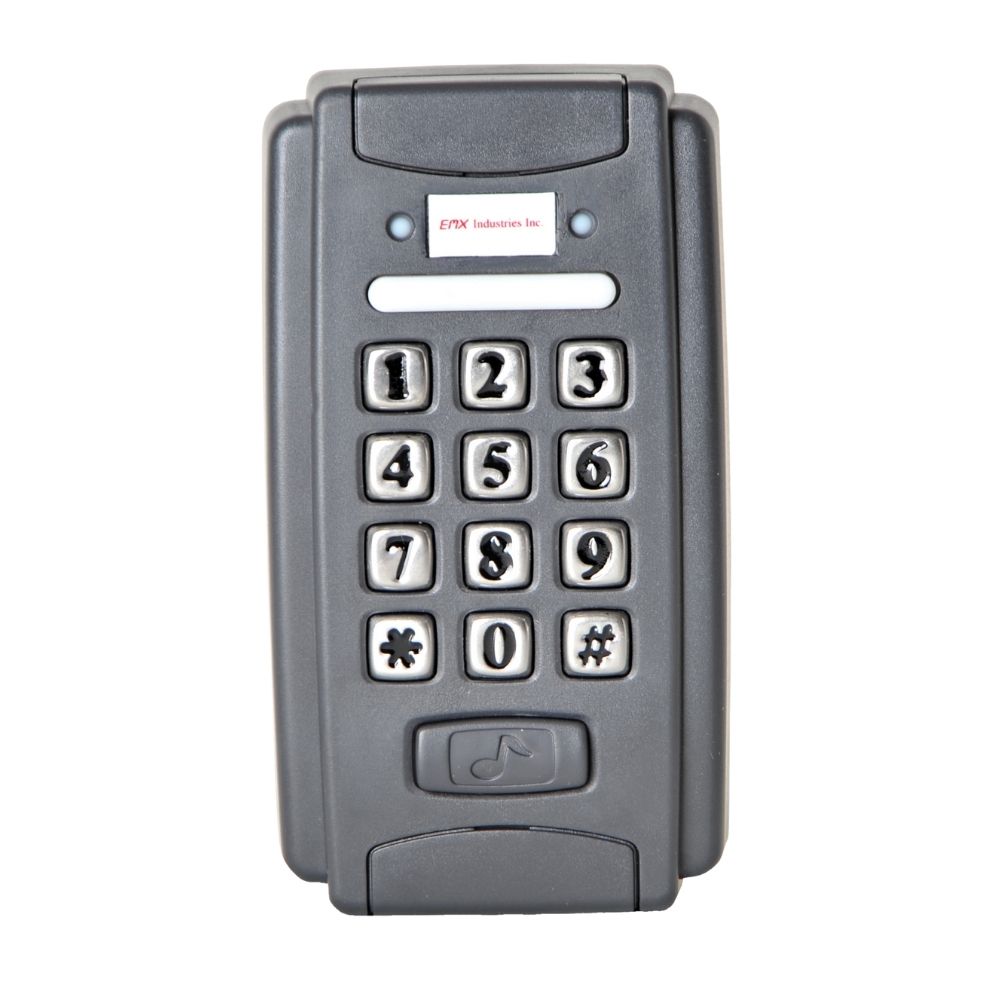

The PRX-320 weatherproof card reader/keypad is a stand-alone device designed for outdoor use with automatic gates and doors.
This proximity reader features a four-door opening modes:

Entering a four-digit pass code only
Proximity card access only
Proximity card plus four-digit pass code
Using a proximity card or a four-digit pass code

Features

Fully weather-proof
Secure passcode programming
Programmable door lock settings
Read range of 5 inches
Versatile entry options
CE certified and is also ROHS compliant

Manufacturer’s Warranty

2 years

Technical Specifications

Power Requirements: 12 VDC 500-800 mA
Power Consumption: 90 mA standby / 110 mA activated
Relay Contact Rating: 3A /12VDC
Power Indicator: RED LED Bar on Constant
Key Confirmation: Green LED On while the key is depressed
Entry Confirmation: Green LED Bar-On for a set time
Entry Denied: Yellow LED flashing
Alarm condition: Yellow LED constant
Read Range: 5 inches
Access: Up to 2000 users by card or 8 user pass codes

Product Literature

EMX PRX-320 Specs Sheet
EMX PRX-320 Instruction Manual
Access Code List Tracker
