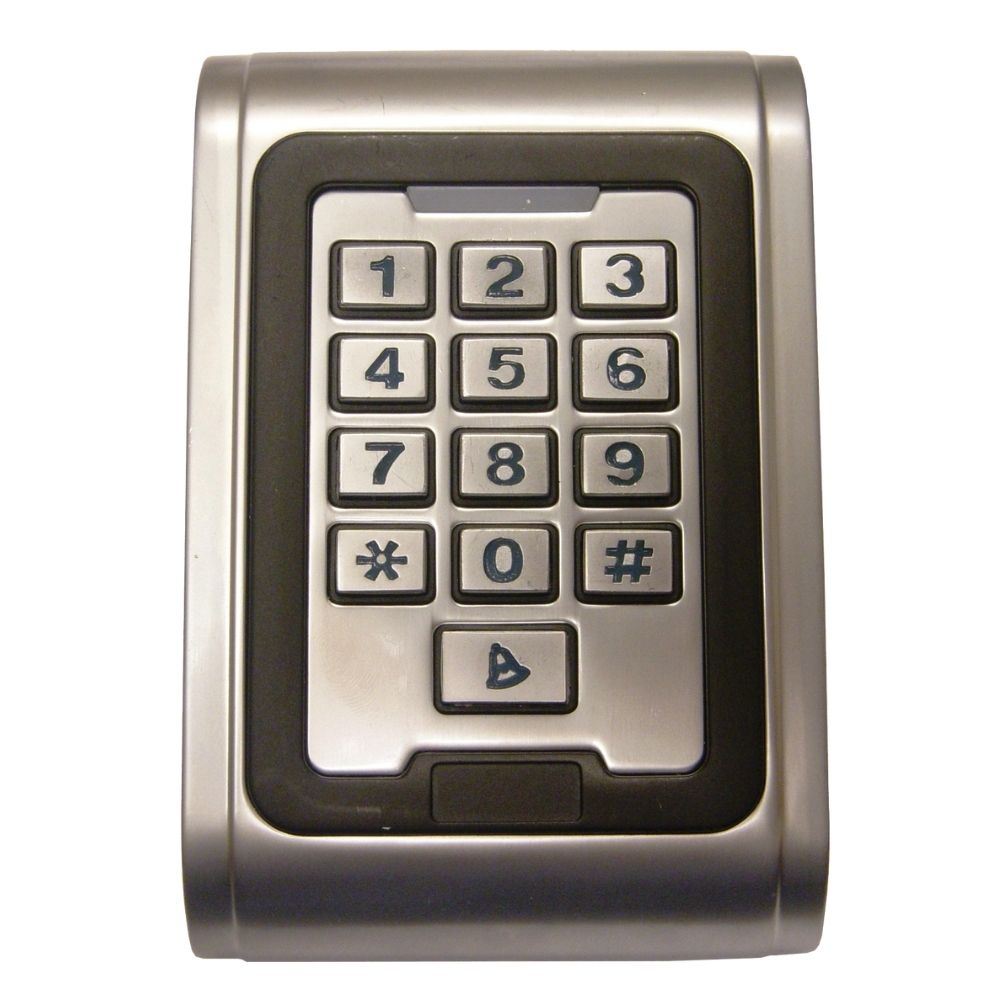

EMX Waterproof Wiegand Card Reader/Keypad – 2000 Users | EMX-CR-2000
$192.99
EMX Waterproof Wiegand Card Reader/Keypad – 2000 Users | EMX-CR-2000
The CR-2000 waterproof Wiegand card reader and keypad provide secure access control for up to 2,000 users via pass cards and/or individual user pass codes. The CR-2000 uses RFID induction technology to communicate with contactless EMX Proximity smart cards.
Secured in a waterproof metal housing, the CR-2000 has a tamper alarm, short circuit protection, and a luminous keypad for nighttime use. Wiegand output enables user access monitoring.
The CR-2000 waterproof weigand card reader and keypad also offers low power consumption (30mA standby).
This waterproof weigand card reader and keypad may also be used stand-alone for access control of doors, gates, and barrier arms.
Features
Low 30 mA standby current
Luminous keypad for nighttime operation
2000 user support
Independent password support (may use code or card for access)
Keypad user delete (for lost or stolen cards or codes)
Output short circuit protection
Wiegand output: Wg26 for cards
Tamper alarm output
Doorbell button: Independent from circuit works with any doorbell
User pass card code change (allows users to use the code they can remember in case the card is lost or forgotten)
Manufacturer’s Warranty
2 years
Technical Specification
Operating Voltage: 9-25 VDC
Current draw standby: < / = 30 mA
Read range: 1.1 in (3cm) – 3.1in (8cm)
Capacity (users): 2000 cards and or passcodes
Operating Temperature: -13°F (-25°C) to 140°F (60°C)
Operating Humidity: 10% ~ 90%
Electric Lock output: < / = 3A
Alarm output: < / = 20A
Short circuit protection time: < / = 100 μ S
Activation time: 0 ~ 99 seconds (adjustable)
Size: 4.74in (120mm) x 2.2in (56mm) x 0.71in (18mm)
Weight: 1.62 lbs.
Product Literature
EMX CR-2000 Spec Sheet
EMX CR-2000 Instruction Manual
Access Code List Tracker
