FAAC Control Board E024U | FAA-202025
$457.99
FAAC Control Board E024U | FAA-202025

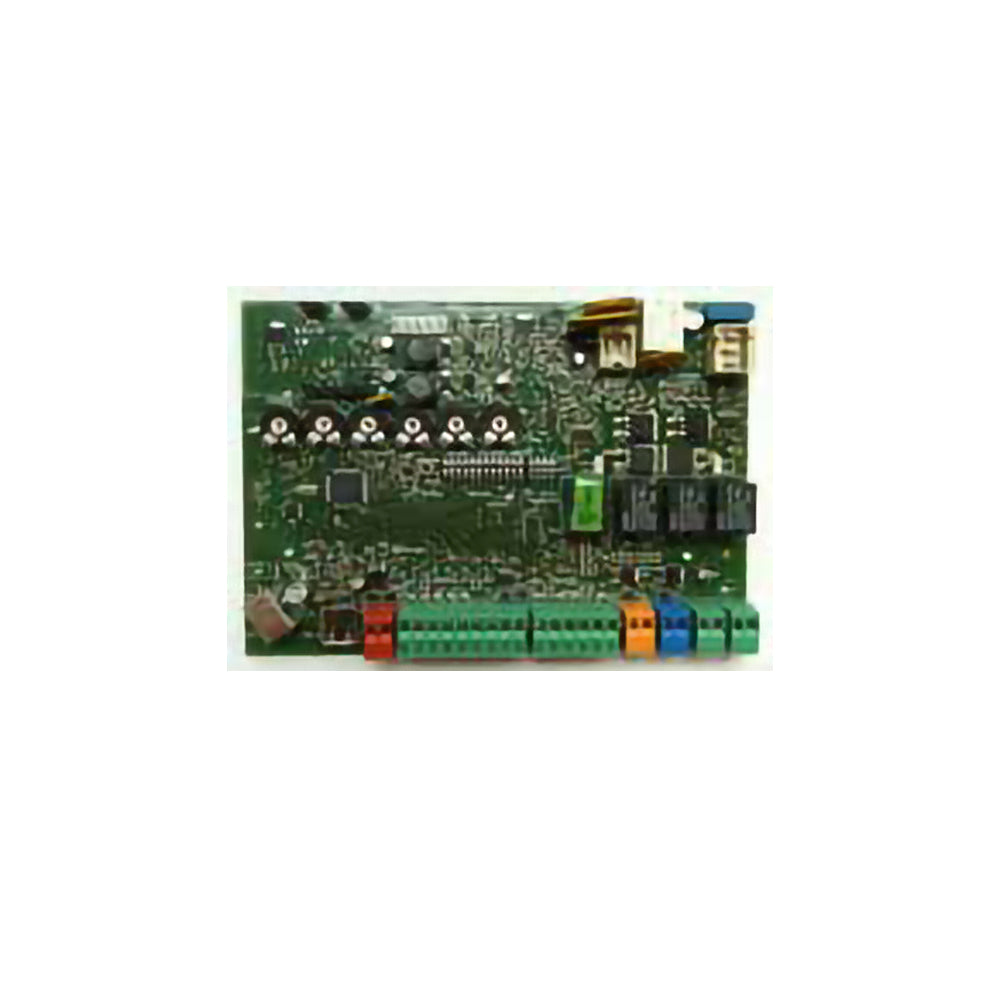

The FAAC E024U control board can be used with all 24V electro-mechanical and hydraulic operators. It features easy programming with trimmers and dip switches, powerful switching power supply, one push button automatic self-learning and built-in battery back-up. It operates 6 different operators of the 24V line (S800H, S450H, S418, 770, 415 and 390).
Features
UL325 and UL991 safety standard compliant
Powerful and efficient switching Power Supply
Easy Programming with trimmers and dip switches
One push button automatic time learning
Self resetting fuses
Built in battery backup
Low current idle mode to preserve battery
Opening and closing delays selectable for overlapping gates
Speed and force adjustable with trimmers
Control Board firmware upgradable via USB
Solar Powered option
Manufacturer’s Warranty Period
2 years
Technical Specifications
Input Voltage: 115 VAC (+10% -6%)
Input power: 400 W max – 4W stand by
Motor output current max: 7 A
Accessory Power: 24 Vdc – 500 mA
Operating Temperature: -4°F – 131°F (-20°C – +55°C)
Dimensions: 17.5 x 15.5 x 6.2 in (445x393x157mm)
Weight (without batteries): 15.5 Lbs (7 kg)
Protection class: NEMA type 3, 3R, 4, 4X, 12 and 13
Operating logics: Semiautomatic (E); Automatic (A); Security (S); Semiautomatic step by step (EP); Automatic step by step (AP); Security step by step (SP); Manned pulsed (B); Manned constant
Compatibility
FAAC S418Â Electromechanical Swing Gate Operator
FAAC S450H Hydraulic Swing Gate Operator
FAAC S800HÂ ENC In-ground Hydraulic Operator
FAAC 390Â Electromechanical Swing Gate Operator with Articulated Arm
FAAC 415Â Electromechanical Swing Gate Operator
FAAC 770Â In-ground Electromechanical Operator
Product Literature
FAAC E024U Manual
FAAC Warranty Policy
