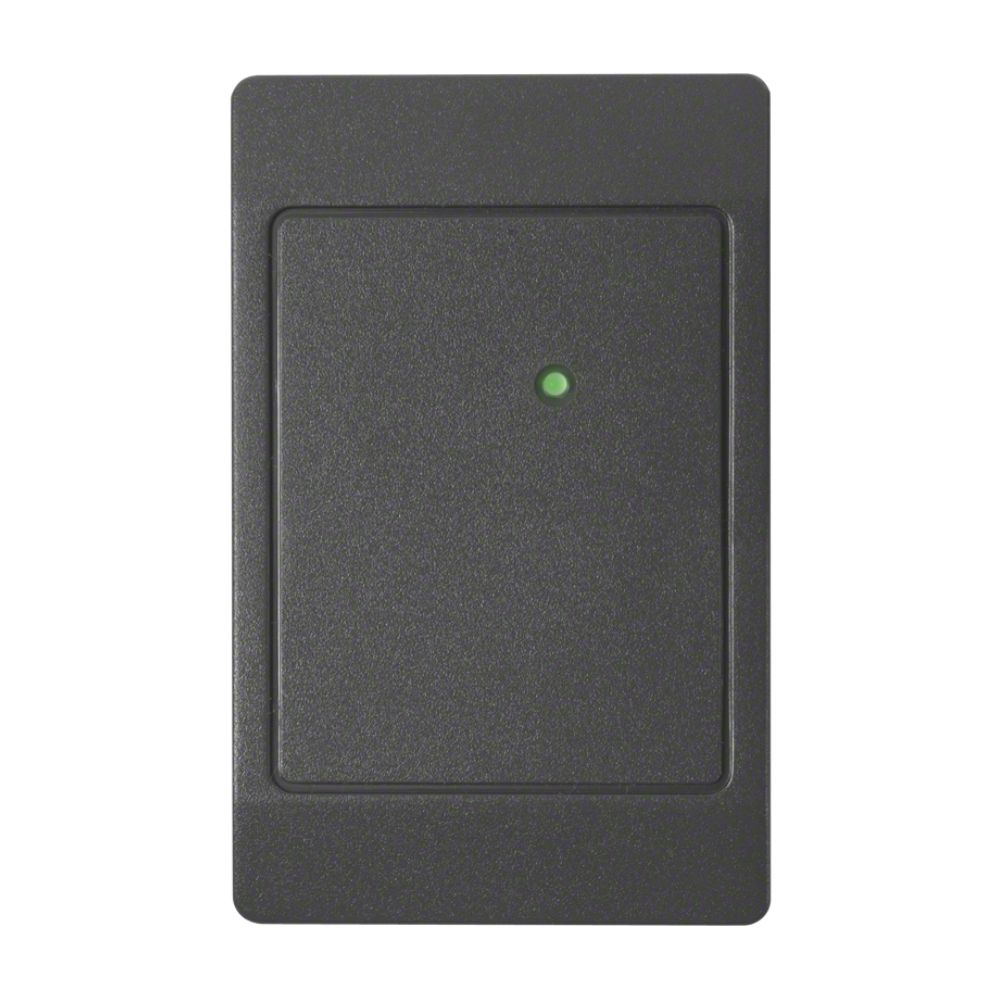

HID ThinLine II Reader (Wiegand Output, Charcoal Gray 18″ Pigtail) | HID-5395CG100
$329.99
HID ThinLine II Reader (Wiegand Output, Charcoal Gray 18 In. Pigtail) | HID-5395CG100
125 kHz low profile proximity card reader
Features
The size of most standard U.S. switch plates
Available with Wiegand or Clock-and-Data interface
Easily installed and maintained with the use of replaceable covers.
Provides high reliability, consistent read range, and low power consumption.
Multicolor LED and internal control or host control of the LED and beeper.
Mounts directly on metal with minimal impact on the read range performance
Lifetime Warranty
Technical Specifications
Dimensions: 4.7˝ x 3.0˝ x .68˝ (12.0 cm x 7.5 cm x 1.5 cm)
Weight: 7.33 oz (208 g)
Read Range: Up to 5.5˝ (14.0 cm)
Mounting: Single-gang electrical box
Power Supply: 5-16 VDC
Current Requirements: 35 mA
Termination: Pigtail
Output Formats: Wiegand or Clock-and-Data
Tamper: No
Indoor/Outdoor: Both
