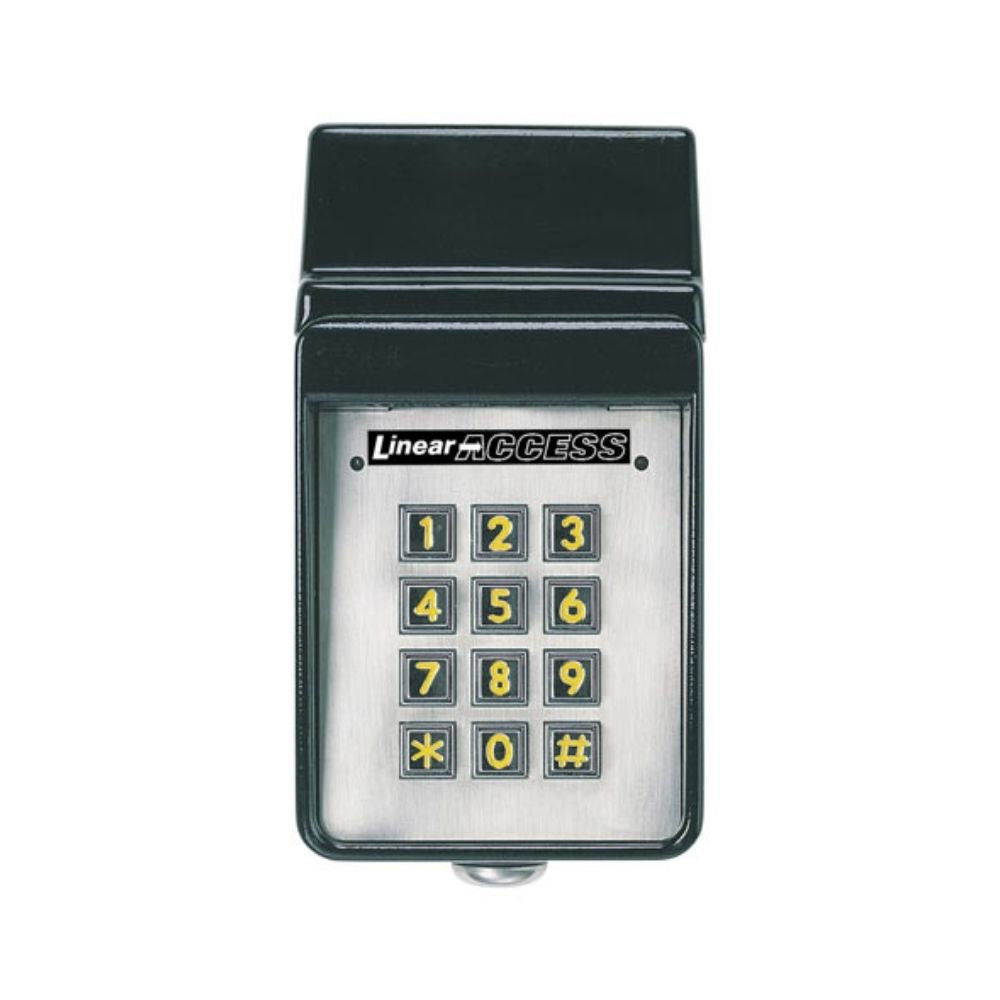

The Model AKR-1 Exterior Digital Keypad with Radio Receiver is a digital keyless entry system designed for access control applications. The keypad is housed in a rugged cast aluminum enclosure that can be mounted to a pedestal or bolted directly to a wall. The die-cast keys have bright, easy-to-read yellow graphics.
Up to 480 entry codes, from 1 to 6 digits in length, can be programmed. They can activate either, or both, of the relay outputs.
Up to four sets of block-coded MegaCode® transmitters (up to 480 transmitters total) can be used to gain access through the AKR-1’s built-in radio receiver. Each transmitter can be individually suspended or re-activated. Four facility codes can be programmed to identify each block of transmitters. A Radio Test Mode is provided for testing transmitters and detecting radio interference. Programming of individual (non-block coded) transmitters is not supported by the AKR-1.
Linear’s Model MGT safety edge transmitter is compatible with the AKR-1. This supervised transmitter is used to detect and transmit obstacle events to the AKR-1 receiver. Obstacle signals from an MGT transmitter will activate Relay #2.
Features

Self-contained keyless entry system ideal for airports, hospitals, warehouses, office buildings, parking lots, and many other commercial facilities

Rugged, cast aluminum enclosure for indoor or outdoor mounting on a wall or pedestal

Built-in radio receiver

Four independent outputs and timers: two form C relays and two solid-state open collector outputs

Accepts 480 entry codes, 480 block code transmitters, plus one fully supervised Model MGT safety edge transmitter

Two LED indicators show system status

Key operating features include door sense input; inhibit input; request-to-exit input; alarm shunt output; timed anti-passback; and keypad lockout

Downlight illuminates whenever a keypad is used

Tactile and audible feedback

Keylock secures keypad to mounting backplate

Technical Specifications

Dimensions: 4.0″ W x 7.0″ H x 3.0″ D (101.6 x 177.8 x 76.2 mm)

Voltage: 12-24 Volts AC or DC (AC supply must be transformer isolated)
Current: 10 mA typical, 150 mA maximum
Main Relay: Form “C” 5 Amps @ 28 Volts maximum

Auxiliary Relay: Form “C” 1 Amp @ 28 Volts maximum

Solid State Outputs: Short-to-common 100 mA @ 24 VDC maximum

RF: Integral 318 MHz super regenerative receiver @ -95 dBm sensitivity (nominal); receives Linear block code transmitters

Open Request: Terminal input activates the programmed control relay

Door Sense/Inhibit: Monitors status of a protected door or can be programmed to restrict access to relay 1

Keypad: Monitors status of a protected door or can be programmed to restrict access to relay 1

Temperature: -22° F to +149° F (-30° C to +65° C)

Humidity: 5% to 95% non-condensing

Product Literature

Linear AKR-1 Installation Manual
Access Code List Tracker
