Linear Indoor and Outdoor Flush-mount Weather Resistant Keypad | LIN-232w
$203.99
Linear Indoor and Outdoor Flush-mount Weather Resistant Keypad | LIN-232w

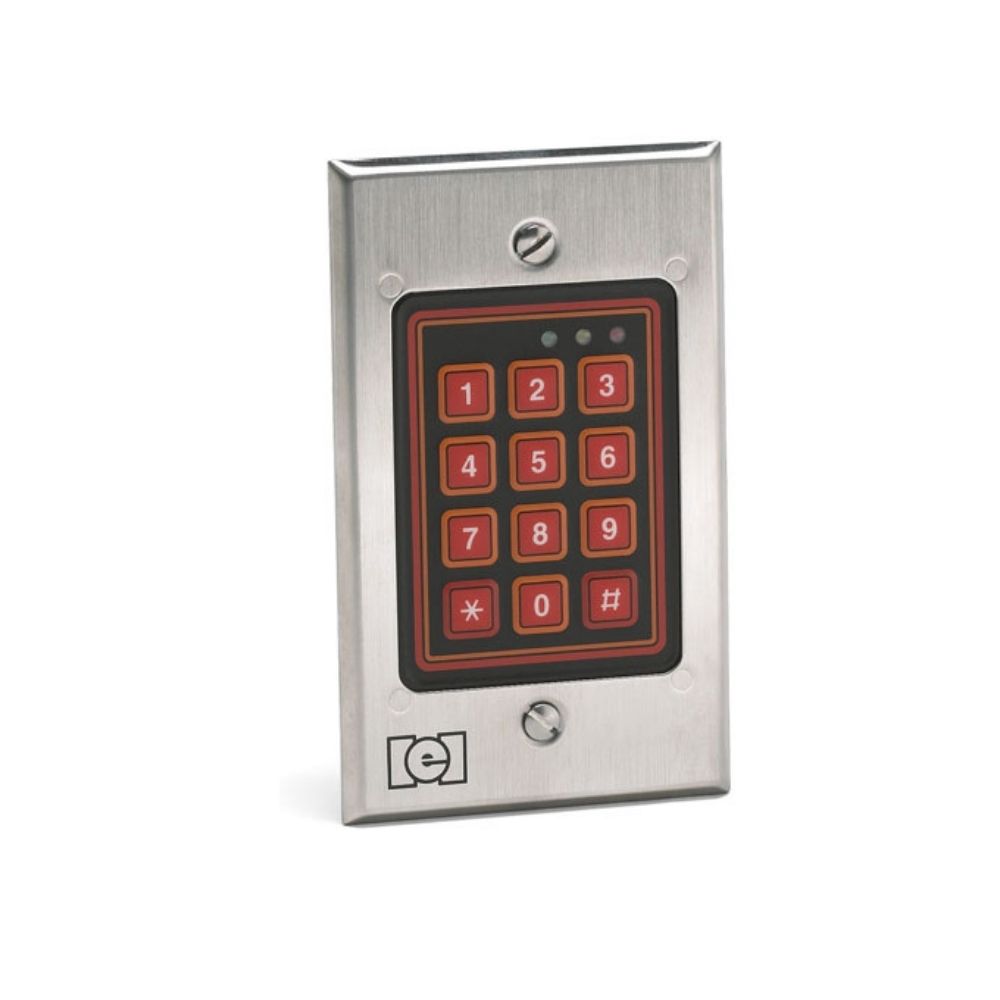

The 232w style single door access control keypad is designed to meet the indoor/outdoor flush mount needs of lighter volume access control environments. The w style features a sealed membrane keypad that allows the keys to be cleaned and resist moisture. There are three LEDs to indicate operation status and provide the user with visual PIN entry confirmation. The W-style keypad mounts to most standard single-gang electrical back boxes.
Features
120 users
Single-gang design
1 SPDT 2 amp relay and three 1 amp SPDT relays
Door Position Monitoring
Door ajar, Forced door, Alarm shunt outputs
Indoor/outdoor use
Functionality mode: 212, 232
Technical Specifications
Dimensions: 2.75″ W x 4.50″ H x 1.13″ D
Operating voltage: 12-24 VAC/DC – auto adjusting
Current draw: 94 mA maximum (add 30 mA for each additional relay)
Temperature tolerance: -20F to 130F
Order number: 213222
Product Literature
Linear 232w Instruction Manual
Access Code List Tracker
