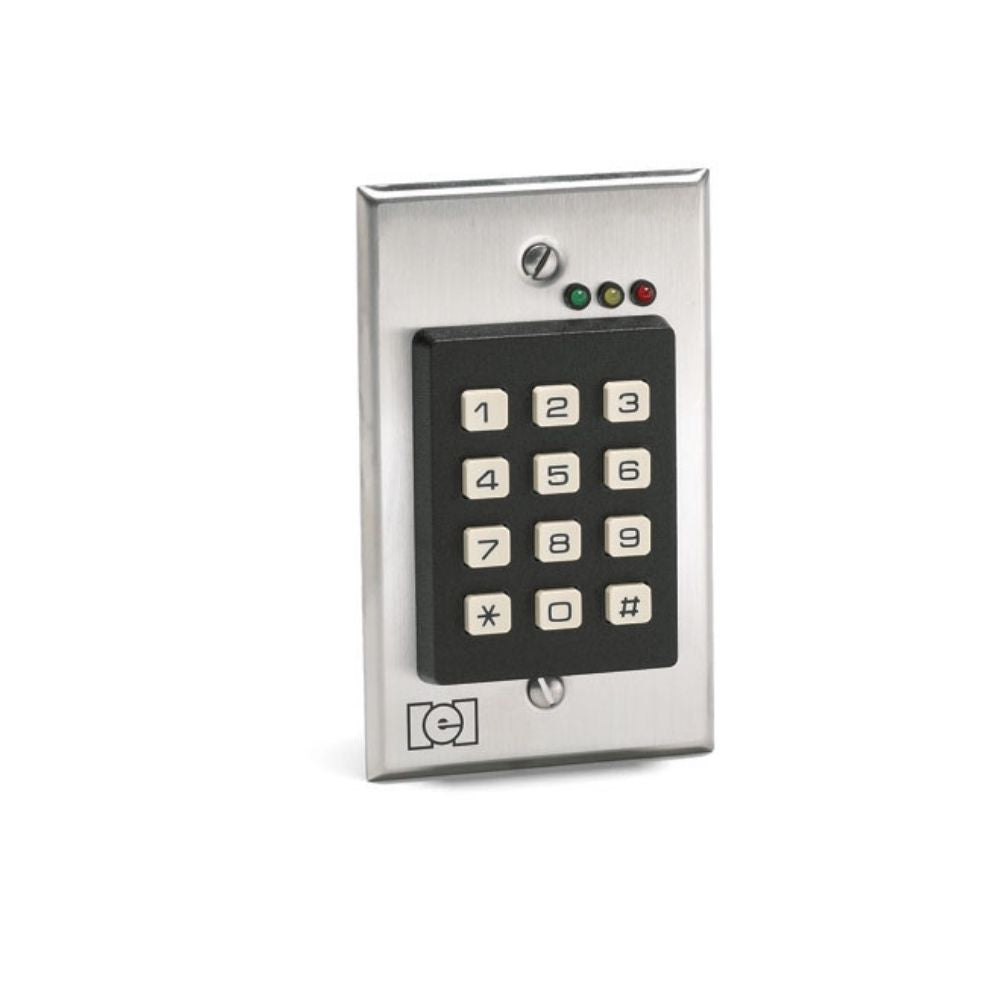

Linear Indoor Flush-mount Keypad | LIN-232i
$160.99
Linear Indoor Flush-mount Keypad | LIN-232i
Affordable single door access control keypad designed to meet the indoor flush mount needs of lighter volume access control environments. There are three LEDs to indicate operation status and provide the user with visual PIN entry confirmation. The I-style keypad mounts to most standard single-gang electrical back boxes.
Features
120 users
Single gang design
1 SPDT 5 amp relay
3 1 amp SPDT relays
Door Position Monitoring
Door Ajar, Forced door
Alarm shunt outputs
Indoor use only
Functionality mode: 212, 232
Technical Specifications
Operating voltage: 12-24 VAC/VDC – auto-sensing
Dimensions: 2.75″ W x 4.50″ H x 1.3 ” D
Current draw: 94 mA maximum (add 30 mA for each relay)
Temperature tolerance: -20F to 130F
Order number: 0-213111
Product Literature
Linear 232i Instruction Manual
Access Code List Tracker
