Pach and Company Quantum QC Series Multi-Tenant System (IP Browser) – Surface Mount | PAC-QC1IP
$1,327.14
Pach and Company Quantum QC Series Multi-Tenant System (IP Browser) – Surface Mount | PAC-QC1IP
Quantum QC Series Analog Web-Based Multi-tenant Systems.
100 tenant, 300 card/code, ip browser, built-in 26-bit wiegand, rs-485, surface mount.
Features
QWCM IP Module
26-Wiegand Input (1 (built-in reader)
Remote Access (touch-tone, programmable)
Manufacturer’s Warranty
24 Months
Technical Specifications
Input Power (12VAC included):Â 12VAC/12VDC
Current Consumption:Â 900mA
Operating Temperature: 10°F-145°F
Liquid Crystal Display (LCD):Â 16 x 1
Tenant Capacity:Â 100
Telephone Line: Analog
Code Capacity: 300
Card Capacity (Built-in Proprietary Reader): 300
Dry Contact Relay: 2
Auto Door Schedules: 10
Time Zones: 10
Holidays: 20
Unlock hold cards/codes: 10
Temporary Cards/codes:Â 10, 10 times used
Unlock Hold Timer:Â 1-98 hours
Auxiliary Input: 2
Door Sensor: 2
Event Report: 600 buffer
Satellite Access Control RS-485 (slave) reader, keypad or combo:Â Max. 8
Dimensions (HWD): 6-7/16″ x 10-3/8″ x 3-1/2″

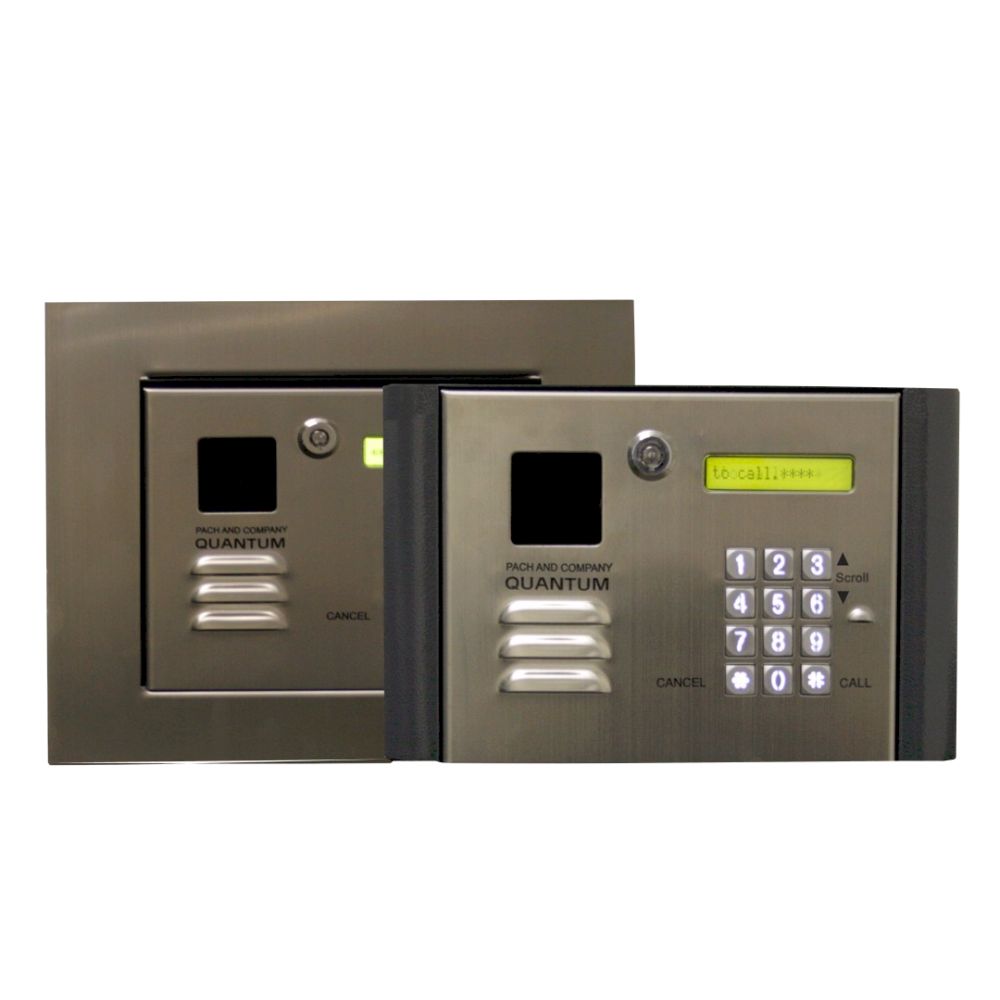

Note:Â The image shown is the full flush mount and surface mount version. If you need the Full Flush Mount Version please click here:Â PAC-QC1IPFF
Product Literature
Pach and Company QC Series Cut Sheet
Pach and Company QC Series Quick Guide
Pach and Company QC Series Manual
