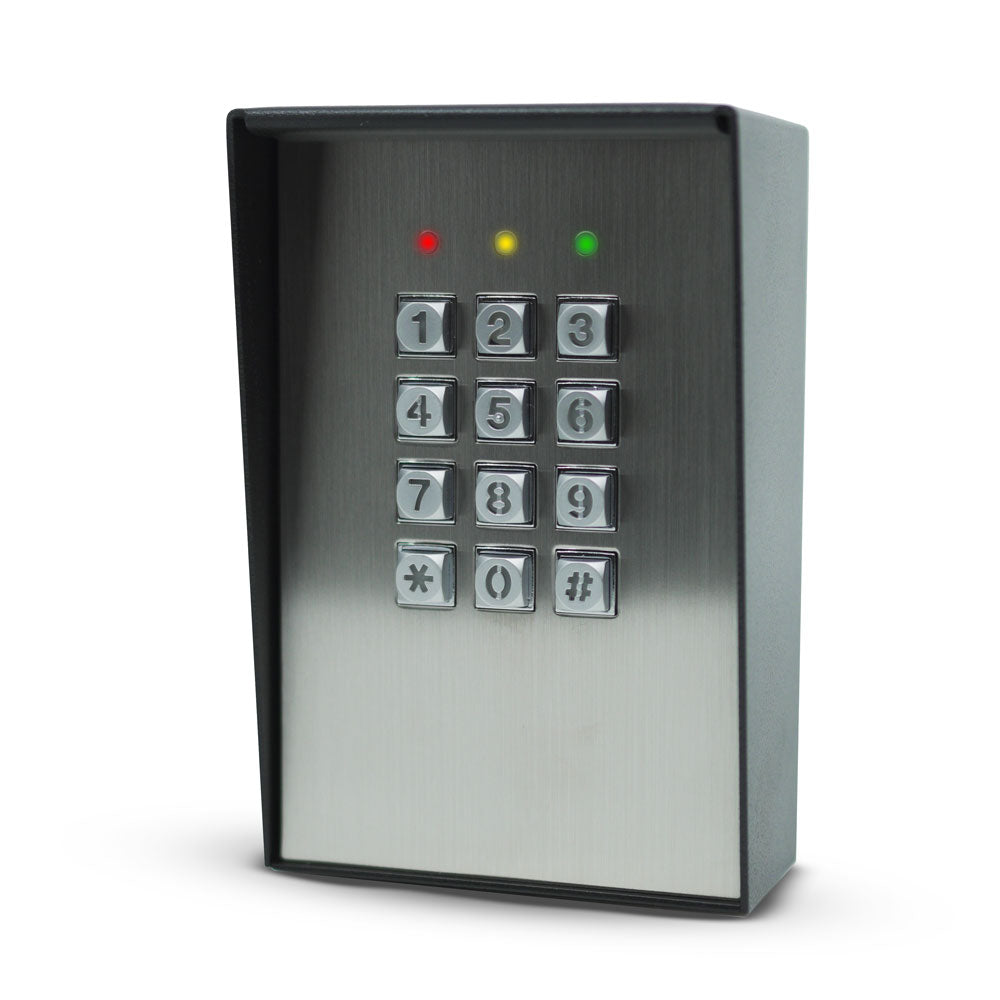

Post Mount Digital Keypad With 1000 User Codes | FAS-TS-1000PWRVR
$159.00
Post Mount Digital Keypad With 1000 User Codes | FAS-TS-1000PWRVR
Outdoor Digital Keypad Model 1000KPWRVR With 1000 User Codes & Temporary Code Feature
The Post Mount Digital Keypad With Temporary Code Feature & 1000 User Codes is a self-contained three relay output, vandal-resistant and weatherproof keypad. It is an ideal keypad mainly for Door Strike and Alarm Arm and disarms control. It is also a programmable industrial timer (with the timing of 1 second to over 24 hours) for Automatic Operator systems. It can work independently as a stand-alone keypad or together with our controller to form a high-security split-decoded keypad system. It also provides 34 bits of Wiegand data output from the entry of a PIN/ code.
The Wiegand data can be used by consultants and end-users when setting product design or system installation criteria. The keypad unit comes with plenty of functions for the owner’s selection via programming. Owners can take them freely to tailor the desired features for their system. It is an ideal keypad mainly for Door Strike and Alarm Arm and disarms control. It is also a programmable industrial timer (with the timing of 1 second to over 24 hours) for Automatic Operator systems. The ASE-1000KPWRVR is designed for surface mounting on a wall or on a mounting post.
Technical Specifications
Operating Voltage: 12V-24V DC, Auto-adjusting
Operating Current: 40mA (quiescent) to 100mA (three relays active)
Operation Temperature: 68 F to 158 F
Environmental Humidity: 5-95% relative humidity non-condensing
Working Environment & Ingress Protection: All-weather, IP-66
Number of Users: Output 1 – 1,000 User PINs + 50 Duress Codes. Output 2 – 100 User PINs + 10 Duress Codes. Output 3 – 100 User PINs + 10 Duress Codes.
Number of Visitor Codes: 50, programmable for one time or with the time limit
Timings for Code Entry: 10 seconds waiting for next digit entry
The Timers: Three 1-99,999 Seconds (Over 24 Hours possible) Independent Programmable Timers for O/P 1, 2 & 3
Input Sensing Terminals: a) Door position, b) Egress, c) O/P 1 inhibit
Output Control Terminals: Transistor Open Collector 24VDC/100mA sink Max for the following outputs a) Duress, b) Alarm, c) Key Active, d) Output 3 (Door Bell version only), e) Inter-lock
Output Contact Ratings: Output Relay 1 – N.C. & N.O. dry contacts, 5A/24VDC Max. Output Relay 2 – N.C. & N.O. dry contacts, 1A/24VDC Max. Output Relay 3 – N.C. & N.O. dry contacts, 1A/24VDC Max. (N.O. contact only for Door Bell version) Tamper Switch – N.C. dry contact, 50mA/24VDC Max.
Estimated Dimensions: 6.14(H) X 4.05(W) X 1.9/2.7(D) inches
Housing: Anodized steel, powder paint coating outer box & plastic inner box
Faceplate Material: .05 inches stainless steel
Manufacturer’s Warranty
1 Year
Product Literature
ASE 1000KPWRVR Manual
Access Code List Tracker
