Ritron DoorCom Wireless Intercom System (Analog, VHF, 150-165MHz, 2 Watts, Narrow Band) | RIT-RDC-147

Ritron DoorCom Wireless Intercom System (Analog, VHF, 150-165MHz, 2 Watts, Narrow Band) | RIT-RDC-147
The DoorCom® wireless intercom helps maintain security protocols while increasing worker efficiency. DoorCom long-range wireless technology provides a means for visitors or employees to communicate from the outside of a locked door to radio-equipped staff inside the facility. Workers can stay focused and productive until they receive the call with a unique call tone. Wasted time is reduced while deliveries and pick-ups are handled more quickly.
The radio transceiver has a range of approximately 350,000 square feet (the actual range depends on building structure and topography). DoorCom® is ideal for installation at delivery or receiving doors, employee entrance, lobby area, will-call/pick-up, loading dock, even on the factory floor.
DoorCom is compatible with virtually any other analog, VHF, or UHF business band 2-way radio. Models are available with the VHF MURS License-Free business use only frequencies, the licensed-required VHF, 150-165MHz and UHF, 450-470MHz business frequency bands.
Includes

R-Series Transceiver (indoor use only) w/ Mounting Bracket
Flex Antenna
RPS-1B 110VAC -12VDC adaptor
20ft. shielded connecting cable #60201121
Outdoor rated RDC-1 all-metal remote-head with speaker/microphone/PTT button

Features

DoorCom® dramatically improves communication, security, and efficiency at any facility.
Installs easily at any entry point to permit visitors to announce their arrival. Long-range performance allows radio-equipped personnel to receive the call from anywhere in the building and respond back instantly using a portable 2-way radio or desk-top base station radio.
DoorCom increases efficiency and helps maintain security by allowing exterior doors to remain locked. Workers remain focused and productive until they receive an intercom call from a visitor.
Narrow Band Compliant
Approximate range: 350,000 sq. ft. The additional range can be achieved with the optional remote mount antenna (RAM-1545), or in some cases, by adding a Ritron UHF Liberty Repeater.

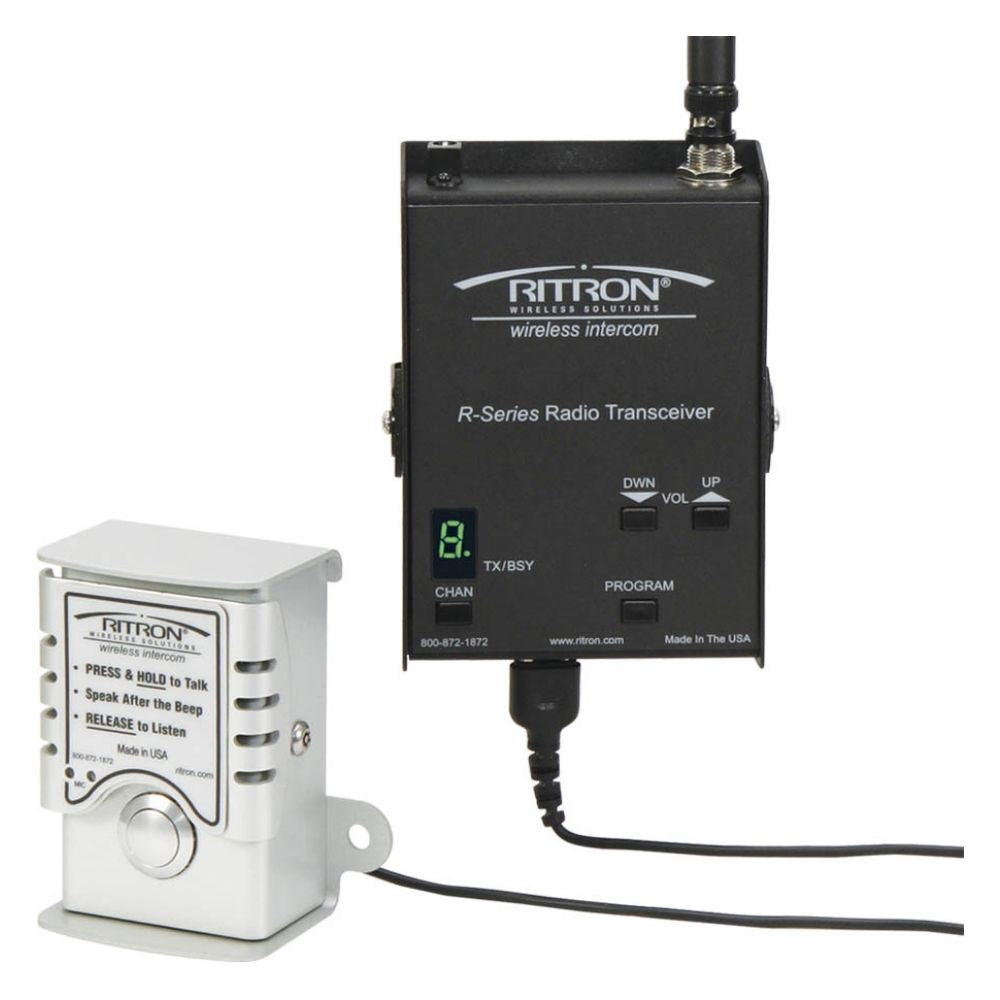

Unique 2-piece system – One 20 ft. long cable connects rugged RDC-1 (outdoor or indoor use) remote-head to the R-Series radio transceiver (indoor use only). The transceiver is powered by included RPS-1B 110VAC -12VDC adaptor.
The transceiver can be field-programmed to a pre-set list of table frequencies or can be PC programmed with Ritron software to be compatible with virtually any other VHF or UHF 2-way radio system, even radio repeaters.
Flexible Multi-Mode Operation in R-Series Transceiver- Callbox Mode: Prevents eavesdropping on the speaker. The speaker turns OFF after a period of inactivity. Always-On Mode: Radio system traffic is always heard on the RDC-1 speaker. Ideal for warehouse and factory floor applications
High Performance – Narrowband analog wireless technology delivers superior signal penetration and radio coverage in and around buildings. Provides reliable 2-way voice communication in demanding applications when you need it. PC Programmable to “custom” frequencies or radio repeaters with Ritron software.
Alerting Tone- A unique call tone is sent each time a new call is initiated from DoorCom. The alert tone differentiates a “DoorCom” call from any other 2-way radio call.

Manufacturer’s Warranty

1 Year

Note

The DoorCom system consists of 1 radio transceiver and 1 heavy-duty remote speaker/microphone. At least one additional companion 2-way radio (not included) is required to have a basic working system. Ritron offers a variety of compatible portable 2-way radios and desk-top base station radios.

Product Video

Product Literature

Ritron RDC-147 Owner’s Manual
