Ritron LoudMouth System with JMX-446D Portable Radio (UHF, Analog) | RIT-LM-U450System

Ritron LoudMouth System with JMX-446D Portable Radio (UHF, Analog) | RIT-LM-U450System

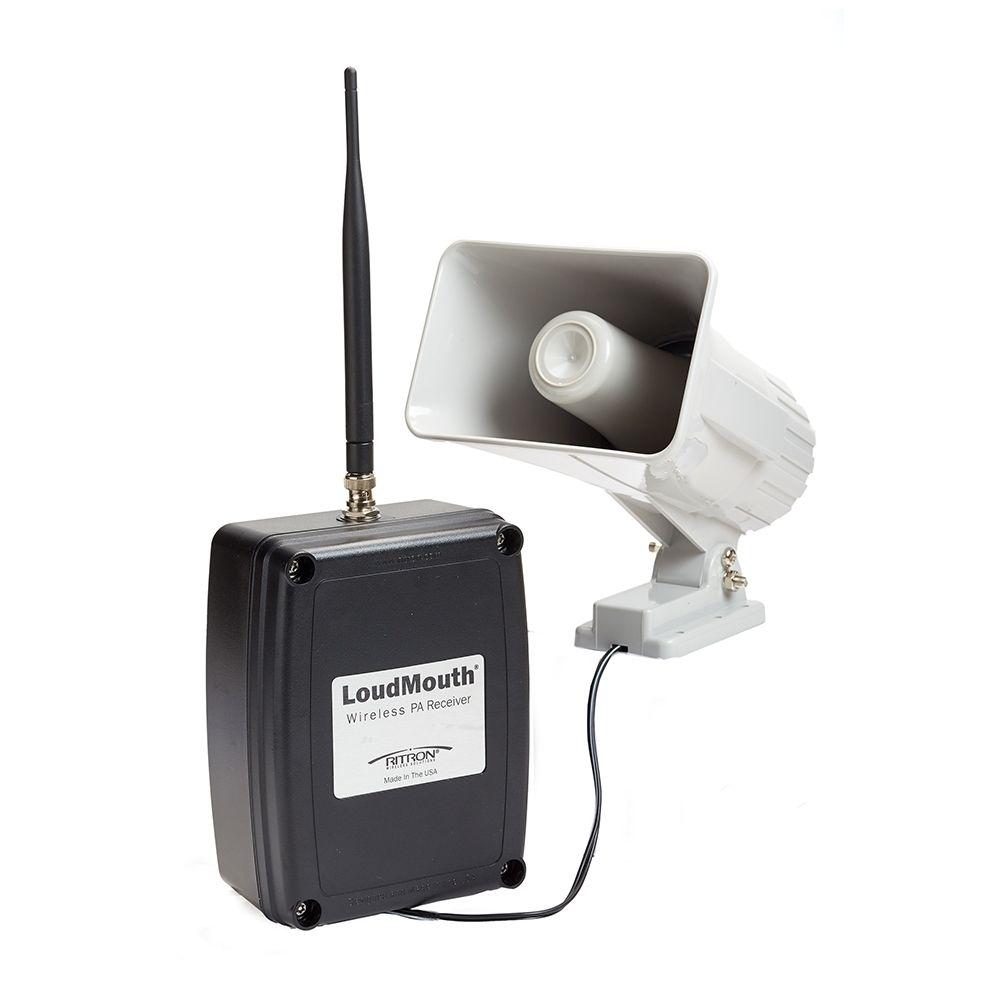

The LoudMouth wireless PA system is an ideal solution anywhere a hard-wired PA is either too expensive or is simply impossible to install.
Get your message to everyone . . . from plant-wide to small pinpoint areas using your business band radio system. It even works with radio repeaters for extended coverage. Optional strobe light provides visual alerting; Automatic Message Repeat function allows re-broadcast of message up to 4 times. Position independent wireless receiver / PA speakers anywhere you need them. A cost-effective replacement for broken or worn-out hard-wired PA systems. Wireless technology provides a cost-effective and flexible way to provide Public Address / Mass Notification coverage across your entire facility or to isolated pinpoint locations.
Includes

Receiver w/ built-in 8 Watt audio amp (LM-600Analog)
Flex antenna
RPS-1B AC Adapter 110-220V
Indoor/Outdoor PA Speaker w/ 25’ cord
Mounting bracket
Compatible 2-way portable radio (JMX-446D)

Features

Rugged, Industrial-Grade VHF/UHF business band receiver. Compatible with other analog business band 2-way radios.
Business Band Frequencies. Models include VHF 150-165MHz (includes 5 MURS license-free business use only frequencies) or UHF, 450-470MHz.
Built-in 8 Watt PA amplifier.
Indoor/outdoor rated PA loudspeaker with mounting bracket.
Field-Programmable Privacy Codes (digital and analog). Choose from 153 possible codes for added PA security access.
Field-Programmable “Paging Codes” Select 1 of 9 different “paging codes” for added PA security access.
Volume Settings allows “best-fit” for a variety of applications.
“LIVE” PA mode or Record-And-Play mode, configurable. Note: Record-and-Play operation recommended for use of a maximum number of product features.
Automatic Message Repeat* Feature – Repeats message from 1 to 4 times consecutively when LM receiver in Record-And-Play mode.
Visual Alert Option – Built-in relay allows the use of an optional strobe light – provides advance visual indication of an incoming PA message.
“Custom” Configuration via PC Programming – Can also be PC programmed using special Ritron programming software to “custom” frequencies or even radio repeaters.
Loud Audio Output – PA horn speaker delivers up to 85dB of audio output @ 50 feet to get your message out loud and clear.
LM Receiver Supports Up To 2 PA Speakers – With an optional “Y” adapter (#RYCONN) and 1 additional PA speaker (#05500040), the LM receiver can provide multi-direction PA coverage.
Multi-Zone Paging Capability – Multiple paging zones can be configured using 2-tone codes. Allows properly configured 2-way radios to access more than one PA speaker/zone.
Signaling Capability – CTCSS and DCS decode, 2-Tone Decode
Optional Back-up Battery – #BP-LM-Li22

Manufacturer’s Warranty

1 Year

Technical Specifications
Audio Output

Output power 60mW – 5.35W RMS adjustable
Nominal coverage when wall-mounted (reference at 0° -5 dB): Vertical: +/- 50°, Horizontal: +/- 45°
Audio input level to power amplifier 180 mVPP
Audio output level 1.9 – 18.5 VPP
Audio speaker volume adjustment 10 – 100%
Frequency response 500 – 3000 Hz +/-5dB

Power Requirements

Operating Voltage: 12 VDC
Maximum operating current: 1.2 A
Operating Temperature of -22º F to +140º F
Standby current: 85 mA

Standby current 80 mA
Battery Saver sleep current 25 mA
Battery Saver sleep time programmable, 0.5 – 8 seconds

Note

The receiver is indoor-rated only. Install in non-corrosive environments, away from the elements. See optional LMH-100 weatherproof housing for outdoor or other potentially corrosive environments.
Does NOT include Optional 2 Hr. Back-Up Battery – Must order separately BP-LM-Li22.

Product Video

Product Literature

Ritron LM-600Analog User Manual
Ritron LoudMouth Wireless PA System Brochure
