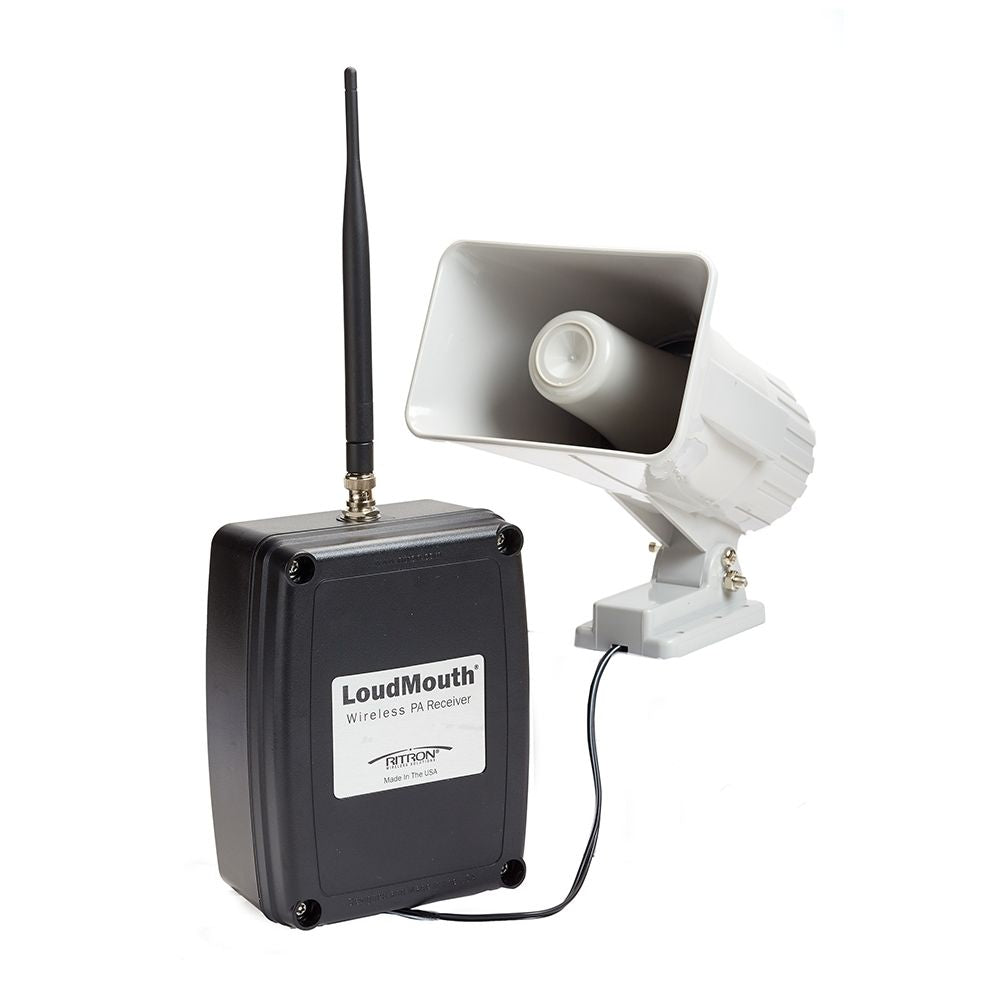

Ritron LoudMouth® Wireless PA/Mass Notification System Analog Only (VHF/UHF, Dual Band Receiver, 1 Channel) | RIT-LM-600Analog

Ritron LoudMouth® Wireless PA/Mass Notification System Analog Only (VHF/UHF, Dual Band Receiver, 1 Channel) | RIT-LM-600Analog
The LoudMouth wireless PA system is an ideal solution anywhere a hard-wired PA is either too expensive or is simply impossible to install.
Get your message to everyone . . . from plant-wide to small pinpoint areas using your business band radio system. It even works with radio repeaters for extended coverage. Optional strobe light provides visual alerting; Automatic Message Repeat function allows re-broadcast of message up to 4 times. Position independent wireless receiver / PA speakers anywhere you need them. A cost-effective replacement for broken or worn-out hard-wired PA systems. Wireless technology provides a cost-effective and flexible way to provide Public Address / Mass Notification coverage across your entire facility or to isolated pinpoint locations.
Includes

Loudmouth® Radio Receiver with 5W audio amplifier (LM-600Analog)
Horn Speaker with RCA phono plug and 25 ft. cable (05500040)
Power Cube, 1.5A with 2.1mm coaxial DC connector (RPS-1B)
Dual-Band Antenna with BNC connector (AFB-1545)
Mounting Brackets (RK-RQX-Q-MB)
T-25 Torx Security Bit (25107400)

Features

Rugged, Industrial-Grade VHF/UHF business band receiver. Compatible with other analog business band 2-way radios.
Business Band Frequencies. Models include VHF 150-165MHz (includes 5 MURS license-free business use only frequencies) or UHF, 450-470MHz.
Built-in 8 Watt PA amplifier.
Indoor/outdoor rated PA loudspeaker with mounting bracket.
Field-Programmable Privacy Codes (digital and analog). Choose from 153 possible codes for added PA security access.
Field-Programmable “Paging Codes” Select 1 of 9 different “paging codes” for added PA security access.
Volume Settings allows “best-fit” for a variety of applications.
“LIVE” PA mode or Record-And-Play mode, configurable. Note: Record-and-Play operation recommended for use of a maximum number of product features.
Automatic Message Repeat* Feature – Repeats message from 1 to 4 times consecutively when LM receiver in Record-And-Play mode.
Visual Alert Option – Built-in relay allows the use of an optional strobe light – provides advance visual indication of an incoming PA message.
“Custom” Configuration via PC Programming – Can also be PC programmed using special Ritron programming software to “custom” frequencies or even radio repeaters.
Loud Audio Output – PA horn speaker delivers up to 85dB of audio output @ 50 feet to get your message out loud and clear.
LM Receiver Supports Up To 2 PA Speakers – With an optional “Y” adapter (#RYCONN) and 1 additional PA speaker (#05500040), the LM receiver can provide multi-direction PA coverage.
Multi-Zone Paging Capability – Multiple paging zones can be configured using 2-tone codes. Allows properly configured 2-way radios to access more than one PA speaker/zone.
Signaling Capability – CTCSS and DCS decode, 2-Tone Decode
Optional Back-up Battery – #BP-LM-Li22

Manufacturer’s Warranty

1 Year

Technical Specifications
Audio Output

Output power 60mW – 5.35W RMS adjustable
Nominal coverage when wall-mounted (reference at 0° -5 dB): Vertical: +/- 50°, Horizontal: +/- 45°
Audio input level to power amplifier 180 mVPP
Audio output level 1.9 – 18.5 VPP
Audio speaker volume adjustment 10 – 100%
Frequency response 500 – 3000 Hz +/-5dB

Power Requirements

Operating Voltage: 12 VDC
Maximum operating current: 1.2 A
Operating Temperature of -22º F to +140º F
Standby current: 85 mA

Standby current 80 mA
Battery Saver sleep current 25 mA
Battery Saver sleep time programmable, 0.5 – 8 seconds

Loudmouth® Speaker

Speaker impedance: 8 Ohms
Speaker power handling: 30W
Speaker physical dimensions: Horn diameter = 4” x 6”. Overall length = 8”
Speaker enclosure material: ABS plastic
Speaker color: Gray (RAL# 7035)
Speaker weight: 26.4 oz.
Speaker mounting: 100° pivot mounted to the plastic bracket.
Speaker environmental: Indoor/Outdoor
Speaker connector: RCA Phono plug molded to speaker wire
Speaker wire: 25 feet, #20 AWG

Loudmouth® Receiver

Receiver physical dimensions: 7.125” H x 5.5” W x 3.0” D
Receiver enclosure material: Hi-Impact Polycarbonate Thermoplastic
Receiver color: Black
Receiver weight: 1.65 lb. (with AFB-1545 antenna and BP-LM-Li22 battery)
Receiver mounting: 2 aluminum brackets to the side of the radio
Receiver environmental: Indoor use only
Audio output connector: RCA phono jack
DC power connector: 2.1mm coaxial DC jack (size M)
Antenna: AFB-1545 dual-band (150-170 MHz, 450-470 MHz)
Noise squelch sensitivity: Programmable, factory set for 12 dB SINAD
Frequency response: 300 – 3000 Hz, de-emphasized
QC/DQC decode time: per EIA Standards
2-Tone decode frequency range: 300 – 1500 Hz
Selcall decode standard: EEA tone set, 3-7 digits
DTMF decode standard: 3-7 digits

Note

The receiver is indoor-rated only. Install in non-corrosive environments, away from the elements. See optional LMH-100 weatherproof housing for outdoor or other potentially corrosive environments.
Does NOT include Optional 2 Hr. Back-Up Battery – Must order separately BP-LM-Li22.
