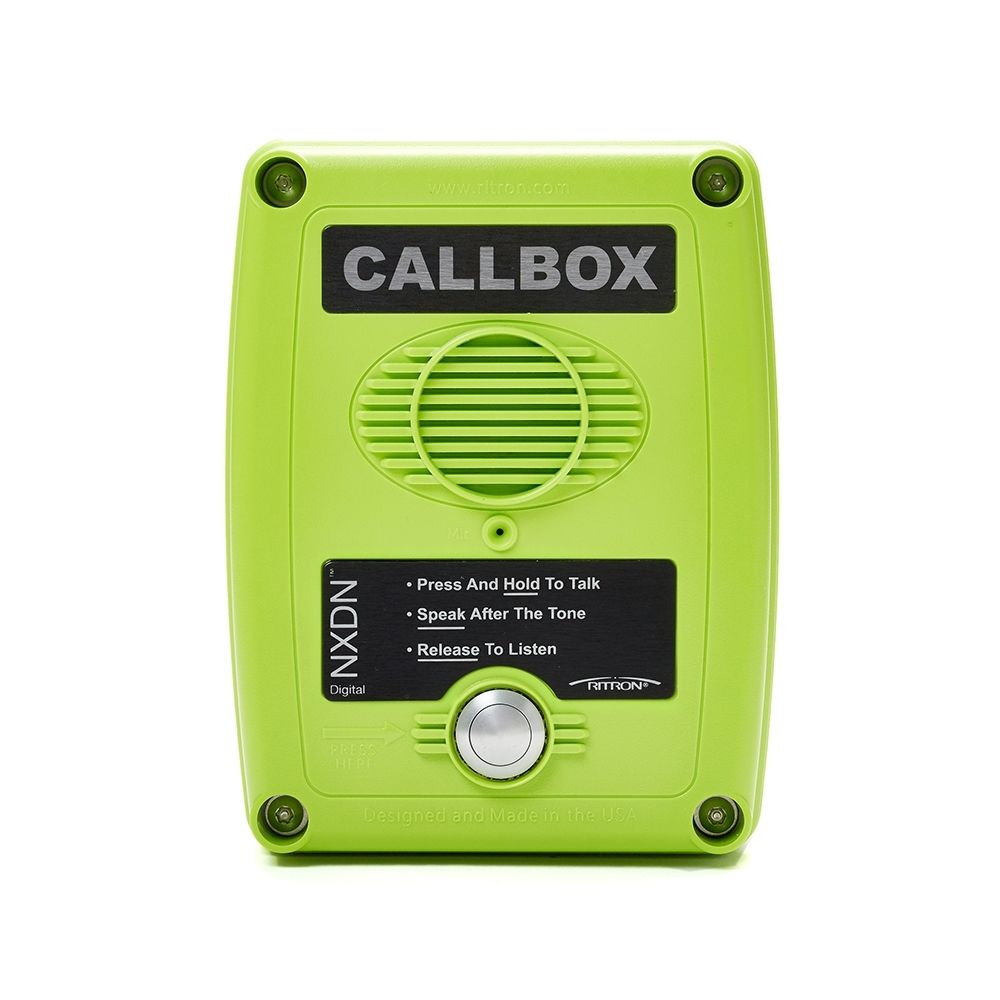

Ritron XD Series – NXDN Digital and Analog Callbox VHF 150-165MHz

Ritron XD Series – NXDN Digital and Analog Callbox VHF 150-165MHz
This product is temporarily unavailable.
Put FDMA NXDN™ digital or analog wireless communication right where you need it! Position the compact and durable XD Series 2-way radio callbox virtually anywhere to maximize manpower efficiency, improve safety and service response times. Deploys easily – no wires, no trenching, no construction required. Can be used stand-alone using alkaline batteries or can be powered using an external AC adapter.
The XD Series callbox provides crisp, clear, long-range NXDN digital or analog voice communication and allows staff and visitors to communicate with your radio-equipped personnel from points near and far, be it the plant floor, a maintenance garage, the gated entrance, a delivery dock, or the 9th Tee. Accomplish more with your 2-way radio system!
Includes

#60201124 Cable Assembly
6-conductor w/ Heyco Strain Relief
(2) Metal Wall-Mount Brackets for flat surface
(4) Screws

Features

Wireless, 2-Way, Push-To-Talk, conventional NXDN Digital or Narrowband Analog Technology
Available in license-required VHF 150-174MHz and UHF, 450-470MHz frequency band
No Trenching or Construction Costs To Install
Business band frequencies, long-range performance – up to1 mile* *line-of-sight.
Works with any VHF or UHF NXDN digital or analog business band 2-way radio
Durable, gasket-sealed, high-impact molded, polycarbonate enclosure
Tamper and Vandal-Resistant, Internal Antenna, Long-Life, Machined Aluminum PTT Button
Battery* Powered For Stand-Alone Operation or External Power for Always-On Operation. *For optimal performance in battery-only applications, Auto Turn-Off should be enabled.

Adjustable Volume, High-Audio Output, Provides Easy To Hear Audio In High Noise Areas
User Adjustable Settings and PC Programmable Allow Easy, In-The-Field Programming. PC programmable
Built-In Relay control allows long-range, remote control of gates or doors or uses with an optional flashing strobe light.
Standard Flange Mount Hole Pattern Easy Installation. Optional Mounting Brackets Available
Available In Different Enclosure Colors: High Visibility Green and Coal Black
Recordable, Stored Voice Messages
Dry-Contact Input for optional sensor trigger
Battery Powered Capable (Auto-Off) or External Power Capable
Rugged, Polycarbonate Gasket-Sealed Enclosure
Internal Antenna
Vandal-Resistant, 1,000,000 Cycle, Aluminum PTT Button
Analog Signalling: CTCSS/DCS, 2-Tone Decode, DTMF/Selcall Encode/Decode
Digital Signalling: 64 RAN Codes, Subscriber ID SUID, Destination ID (Individual & Group Selective Call, All-Call)
D-Cell (3) Battery Tray (batteries not included)
Integrated Speaker & Microphone
Hi-Visibility Green and Black Enclosure Color Choice
Field-Programmable or PC Programmable
T-25 Torx Bit (hollow point type)

Manufacturer’s Warranty

1 Year

Technical Specifications

Description – Analog/NXDN Digital, Conventional: VHF, 150-160 MHZ, Part 90 Freqs.

Tx Pwr Using 3 D-Cells: 700mW

TX Pwr Using Ext 12VDC Pwr: 2 Watts

Includes Built-In Relay, Stored-Voice Msg, Sensor Switch Inputs: Yes
RF Channels: 1 Channel NXDN Digital (12.5 or 6.25KHz) or Analog (12.5KHz)
Signaling-Analog Mode: CTCSS/DCS Encode//Decode Codes, DTMF and Selcall Encode/Decode, 2 Tone Decode
Signaling-NXDN Digital Mode: 64 Radio Access Numbers (RAN), Subscriber Unit ID (SUID), Destination ID (Individual & Group Selective Call, All-Call)
Dimensions: 7” H x 5” W x 3” D
Weight: 2.75 lbs
Enclosure Material: Gasket Sealed, High-Impact Polycarbonate
Colors: Black or High-Viz Green
Environmental: Splash resistant, shock, and vibration per Ritron test
Operating Temperature: -20°C to +55°C (-4°F to 131°F) Battery rating. At 0°C the capacity is < 50% rated) Talk range will decrease at low temperatures when operating on alkaline batteries.
Programming: Field programming capability of limited parameters. Full programming capability using internal USB Connector used for full PC Programming.
Built-in Remote Control Relay: Can be used to remotely control gates, doors or strobe light. (7 Series) Relay switch is controlled when callbox receives the pre-programmed selective signaling command code.
SPDT, 3A, 125VAC/30VDC – Normally Open or Normally Closed (NO Default). Modes of Operation: Momentary or Toggle, On/Off.
Aux Sensor Monitoring Input : Optional sensors used to detect motion, gate movement, vandal/tamper or vehicle presence can be connected to the callbox using the sensor input.
Sensor input responds to an Open or Closed switch. Callbox will send either an alarm tone or a recordable voice message when optional switch/sensor detects a change.
Can also be programmed to automatically turn callbox ON and transmits recordable voice message or alarm tone to radios monitoring callbox activity.
Adjustable Speaker Volume: Adjustable 20% to 100%
Automatic Turn-Off Feature: Conserves batteries. Selectable turn-off times will automatically turn callbox off after a set period of inactivity on the radio channel. Auto Turn-OFF feature must be enabled when using battery only power.
Listen-In Feature: Callbox can be selectively paged to allow remote monitoring of audio in the vicinity of the callbox.
Busy Channel TX Inhibit: Prevents Callbox from transmitting if someone else is using the radio channel.
Recordable Voice Messages: Greeting Message/Send Call Alert Message/Sensor ON/Sensor OFF/ Low Battery Message/Send Power Fail Message/Auto “Re-Send” – Selectable 0-5 times.
Battery Life: 3 D-Cell Alkaline Batteries: Number of Transmissions: Approximately 6,000 based on a duty cycle of: 3 Seconds Receive, 3 Seconds Transmit, 10 Seconds Standby

Model Numbering Key

7: denotes advanced feature model i.e. built-in relay control, recordable voice messages, and 1 dry-contact switch input.
-BLK: denotes housing color is black. (Default Color is Hi-Visibility Green)
