SCP Crest Bus Cable PVC – Teal w/ Yellow Stripe (1000′ Spool) | SCP-CREST-1
$308.99
SCP Crest Bus Cable PVC – Teal w/ Yellow Stripe (1000 ft. Spool) | SCP-CREST-1
CREST BUS CABLE- 2C/22 AWG BC STRANDED, AL FOIL SHIELD W/DRAIN + 2C/18 AWG BC STRANDED, UL CM, EN50575:2014 Eca, PVC JACKET- TEAL w/YELLOW STRIPE- 1000FT/305M SPOOL
Features
SCP manufactures specialized control cables for Crestron Systems. These bundled cables facilitate fast and easy wiring for Crestron AV distribution switches, room solution boxes, intercoms, and touch panels. The constructions with RG6 coax allow for the distribution of CATV/Satellite and broadband video. SCP Crestron-compatible cables are available in Non-plenum PVC, Plunum CMP, or Low Smoke Zero Halogen (LSZH).
CM rating, UL 13 and 444, NEC Article 725 and 800.RoHS, CE. UL 1685 vertical tray.
Applications
SCP Crest-1 control cable provides a communications link between Crestron control systems, touchpanels, keypads, tuners, audio processors, video switchers, camera pan/tilts, expansion modules, and other Crestron devices. Compare to Crestrons Cresnet cable. The SCP Crest-1 is also a universal control system cable that can be used on various other Brand systems such as AMX® and Lutron®. IP video and control; general purpose RS-232, RS-485 simplex data and control; and general purpose communication and control systems. This cable is also compatible with the AMX AXLink™ Systems.
SCP Standard Limited Warranty
Lifetime Limited Warranty

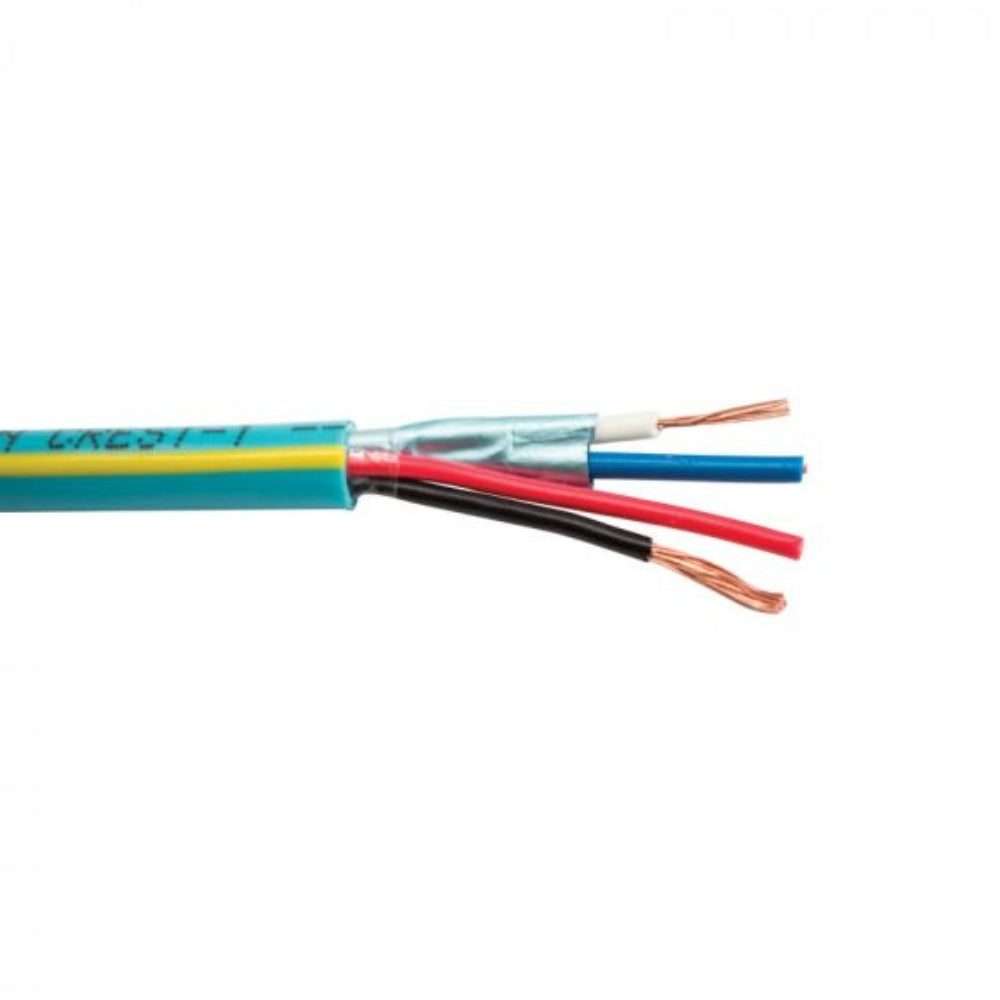

Construction
This cable consists of:
2 conductor 22 AWG bare copper stranded shielded with overall AL foil- low capacitance plus
2 conductor 18 AWG bare copper stranded unshielded, and a TC drain with an overall PVC jacket.
The cable includes SCP Cable Labeling System with sequential foot/meter markings and room/zone/outlet designations for easy cable identification.
Jacket / Color: PVC – Teal w/Yellow Stripe
Packaged Length: 305m/1000ft Spool
Dimensions L*W*H (in): 14.17*7.87*6.29
CREST-1 is comparable to:
Belden 1502r
Honeywell 1244
Coleman 99295
Liberty CRESNET
CRESTRON CRESNET-NP
AMX AMX AXLink™ Control Cable
The cross reference numbers above represent competitor products that are functionally equivalent to the SCP product. Color codes, packaging, and some constructional differences may exist. While we have done our best with the cross-references, we are not responsible for any errors. If you find an error, please bring it to our attention so that we make the correction.
Please refer to the SCP data sheet for specific details or please call our technical support team at (800) 730-8382 for more information.
Note: Crestron®, Cresnet®, CresCat®, CresFiber®, and DigitalMedia® are registered trademarks of Crestron Electronics Inc. Structured Cable Products Inc. disclaims proprietary interest in the marks and names of others.
Product Literature
SCP Crest-1 Data Sheet
