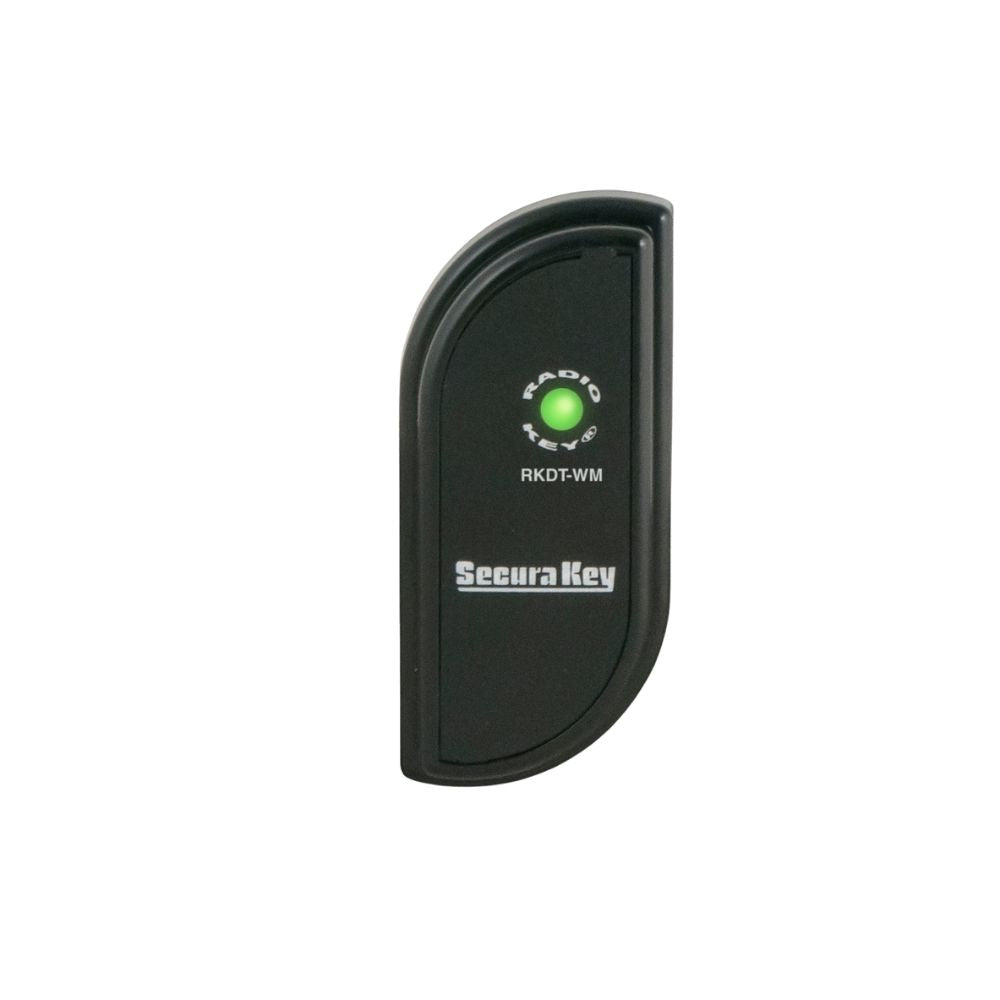

SecuraKey Proximity Reader Dual Technology Mullion Style | SKY-RKDT-WM

Securakey Proximity Reader Dual Technology Mullion Style | SKY-RKDT-WM
The RKDT-WS has a switchplate configuration that fits a standard J-box. It includes a convenient wiring harness, which allows the reader to be plugged in when the installation is completed.
The RKDT-WM/WS adds HID® prox card compatibility with many formats to the popular Radio Key® proximity readers. It can be used where HID® and Secura Key cards are combined at the same facility, or where customers are transitioning from HID® to Secura Key. The reader can be set to read either technology or both, and following a transition period, reading capability for either technology can be “turned off.”
The RKDT-WM/WS works with Secura Key 26 or 32-bit cards, as well as HID® passive cards with non-proprietary 26 – 37 bit “pass-through” formats. Contact the factory for additional details.
The RKDT-WM/WS has an SIA Standard Wiegand output and transmits data in virtually any Wiegand format up to 40 bits, so it is compatible with most telephone entry systems and access control panels, including the Secura Key SK-ACP. Industry-standard wire colors and functions and 5VDC operation allows easy upgrade of existing Wiegand interface readers including Wiegand swipe, TOUCH CARD™ (barium ferrite), or magstripe technologies, as well as replacement of existing HID® readers.
Features

Reads Secura Key and most HID® 125 KHz passive proximity cards and tags (non-proprietary formats)
Epoxy potted for extreme weather conditions
The transition feature allows Secura Key or HID® card reading capability to be enabled or disabled
Mullion or J-Box Mounting
External LED and Buzzer Controls
Low Voltage for Easy Upgrades
SIA Standard Wiegand Output — works with any Standard Access Control Panel
Industry Standard Wire Colors and Functions for Easy Upgrade or Replacement
UL294, FCC and CE Regulatory Approvals

Technical Specification

Dimensions (H, W, D): 3.5” x 1.6” x 0.6” 8.89 x 4.06 x 1.52 cm
Mounting: Mullion, wall, post
Weight: 2.88 oz (81.65 gm)
Material: ABS
Color: Black
Power Requirements: 150mA Max. @ 5-14VDC
Bi-Color: LED Red and Green – Ground control line to Activate, or ground both for Amber
Buzzer Control: Ground to Activate
Hold Line: Ground to Activate
Communications: Wiegand – formats up to 40 bits
Cable Required: Up to 500 ft. 5-10 cond. 18-22 AWG Shielded, non-twisted
Environmental: Operating Temperature: -40° to +158° F(-40° to +70° C) Relative Humidity: 0-100% Non-Condensing
Operating Frequency: 125 kHz
Read Range: RKCM-02 Molded Card up to 4.5” (11.4 cm) RKCI-02 ISO Card up to 2.5” (6.3 cm) RKKT-02 Key Tag up to 3.5” (8.8 cm)
Operating Mode: Read-only, card data: Radio Key®+HID® Prox (default); Radio Key® Only; HID® Only (field configurable)
Compatible Cards – Secura Key: RKCM-02 (Molded Clamshell Card); RKCI-02 (ISO Card); RKKT-02 (Key Tag)
Compatible Cards – HID® Formatted: ProxCard® II, ISOProx® II, DuoProx® II, ProxKey® II, MicroProx® Tag – encoded with “passthrough” Wiegand formats 26-37 bits. Call the factory for additional information.
Regulatory Approvals: UL/cUL294, Part 15 Class B FCC, Canada Radio, CE Mark, RoHS compliant
Warranty: This Secura Key product is warranted against defects in materials and workmanship for life. Secura Key will replace any Secura Key manufactured product that fails to perform as intended. This warranty does not include freight, taxes, duties, or installation expenses. See price list for complete terms and conditions.
