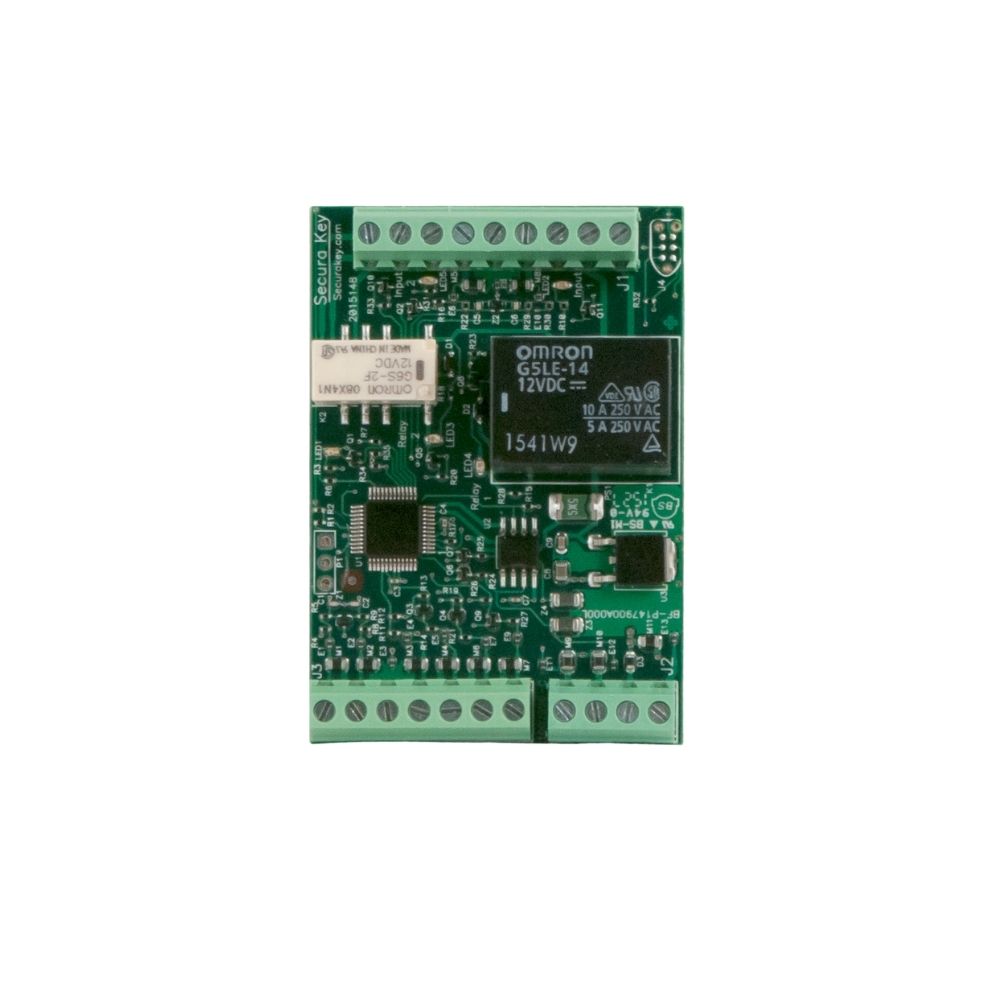

SecuraKey Single-door Interface, RS-485, Wiegand Input | SKY-SK-WIO-1
$282.99
SecuraKey Single-door Interface, RS-485, Wiegand Input | SKY-SK-WIO-1
This unit is designed to connect Wiegand output devices, such as long-range card readers (RK-WL), keypads (SK-KPM/S) and biometric readers, and non-Secura Key readers to the Peripheral Bus of Secura Key’s NOVA.16 Access Control Panel. (It will also work in any system using Secura Key’s SR Protocol over an RS-485 bus.) It receives data and power from the NOVA.16 panel and has all the input and output connections for a controlled door or gate, including a Wiegand Input, latches and aux relay outputs, and two “alarm” inputs.
Technical Specification
POWER REQUIREMENTS: 12-14VDC, 100 mA max. Use reader power from NOVA.16 or RK-PS 12VDC 500 mA supply
INPUTS AND OUTPUTS:
Latch Relay: 10A @ 200VAC, 8A @ 30VDC
Aux Relay: 2A @ 30 VDC, 0.5A @ 125 VAC
Cable Type: 18/2, 250 ft. (76.2 m)
Inputs 1 & 2: Ground to Activate
Cable Type: 2 cond. 22-24 AWG, Shielded, 250 ft. (76.2 m)
Wiegand: SIA Standard Interface
Cable Type: 4-7 cond. depending on inputs used, 22-24 AWG, Shielded, 500 ft. (152.4 m)
ENVIRONMENT: Ambient Temperature: -40° to +70° C (-40° to +158° F) Humidity – 0-95% Non-condensing
COMMUNICATIONS: RS 485 – Host Driven SR Protocol Cable Type – 2 twisted pair, 22-24 AWG or CAT 5, 5e or 6, 4000 ft. (1219 m) total system
Product Literature
SecuraKey SK-WIO-1 Instruction Manual
