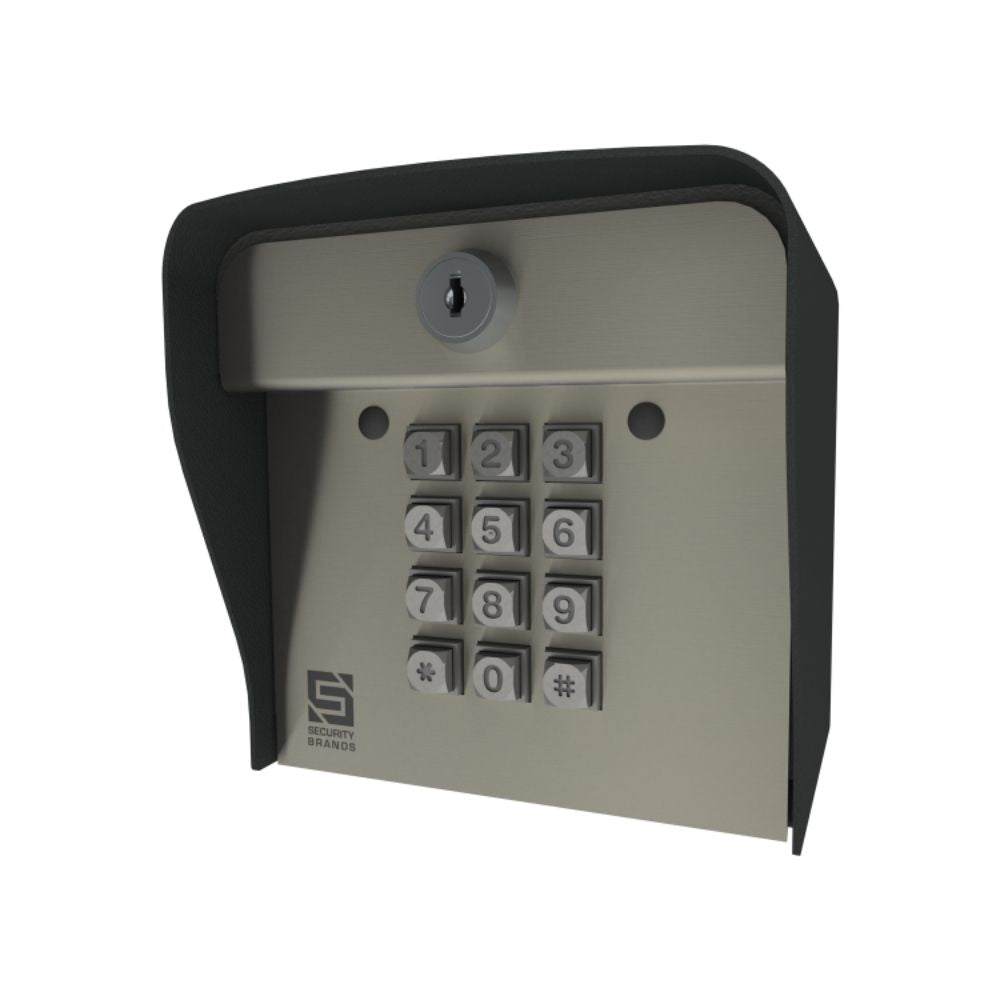

Security Brands Advantage DKLP 100-Code Low-Power Keypad (Post Mount) | SEC-19-100
$253.99
Security Brands Advantage DKLP 100-Code Low-Power Keypad (Post Mount) | SEC-19-100
Introduced for the solar gate operator, the Advantage DKLP series is designed for the user with low-power needs. With a low current draw, this keypad is the industry leader for solar applications. It offers 100 four-digit codes and is available as a post-mount keypad, an economy post-mount keypad, a post-mount keypad with intercom, and a single-gang unit. None of these units have a lighted keypad.
NOTE: 12 VDC (POWER SUPPLY NOT INCLUDED) / Solar Friendly
Features
Latch code
Low current draw
100 four-digit code capacity
Personal master code
Variable relay time
Relay shunt for alarm system
Audible-tone feedback
Non-volatile memory
Solar Friendly
Familiar Programming You Can Rely On
Two-Year Limited Warranty
Made in the USA from Global Materials
No-nonsense OperationIf you’re looking for a keypad that is easy to program and easy to use, look no further!
Goes Where You GoWith such a low current draw, this unit can be located in the remotest of locations, as long as sunlight is sufficient.
Sturdy & DurableCrafted exclusively from stainless and powder-coated steel, this box is built to last!
Programming You KnowQuick, simple, and familiar, the basic programming steps on the keypad are identical to those on all of our keypads.
Manufacturer’s Warranty Period
2-Year Limited Warranty
Technical Specifications
Dimensions: 5.22″(H) x 5.22″(W) x 5.10″(D)
Shipping Weight: 5 lbs.
Electrical Input: 12 VDC (power supply not included)
Current Draw: less than 6.0 mA @ 12 VDC (with relay latched)
Contact Rating: 2 A @ 30 V / .5 A @ 120 V ( DC Load / AC Load)
Variable Relay Time: 1–9 seconds
Operating Temperature: -15 to 175 °F
Product Literature
Security Brands Advantage DKLP 100 Quick Start Guide
Security Brands Advantage DKLP 100 Specifications Sheet
Access Code List Tracker
Security Brands Two-Year Limited Warranty
