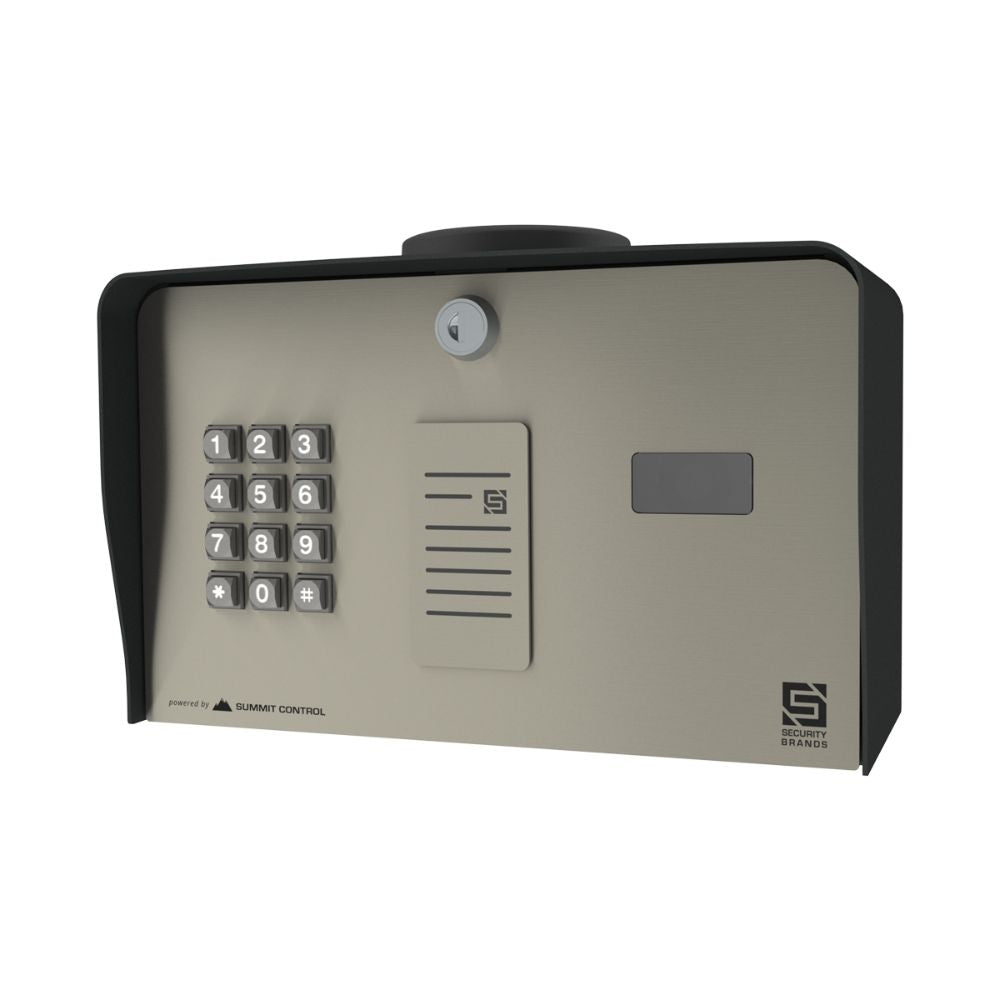

Security Brands Ascent K2 – Cellular Keypad with Proximity Card Reader Mount | SEC-25-K2
$1,522.99
Security Brands Ascent K2 – Cellular Keypad with Proximity Card Reader Mount | SEC-25-K2
Our cellular keypads are powered by our best-in-class, cloud-based Summit Control software platform.
Ascent K2 gives you 2 Wiegand inputs and a proximity card reader mount so you can mount your favorite 26-bit Wiegand proximity card reader.
This unit features app, text, and voice control, a keypad, two Wiegand inputs, and time/use-limited QR code quick access for guests.
Includes
GSM SIM card ready for activation
12-VDC AC/DC adapter (PS-12DC1)
Features
Full cellular connectivity with auto network selection
HD video capture with IR for low light
Time/use-limited QR-code quick access
Control up to 2 gates/doors
2 relays
2 Wiegand inputs
Up to 10,000 app, text, and voice users*
Up to 10,000 keypad codes*
Push and/or email event and status notifications
Cloud-based access control management
LED downlight and LED-backlit keypad
Mounting location for proximity card reader
Other Great Features
Weekly Event Schedule
Audit trail with detailed reports
Stainless-steel faceplate
Powder-coated steel enclosure
Pluggable terminal blocks
Powered by Summit Control
Made in the USA from Global Materials
Versatile & ConvenientControl your gate from anywhere using a computer, tablet, or phone.
An Ascent with a ViewGet visual ID on all visitors to your property with photo push notifications; get photos automatically or whenever you choose.
Just Swipe Your CardInstall your own compatible proximity card reader and enjoy added flexibility.
Keypad ConvenienceControl up to two gates/doors with the onboard keypad, and easily add up to two additional Wiegand devices to your system.
Manufacturer’s Warranty Period
2-Year Limited Warranty
Technical Specifications
Dimensions: 8.42″(H) x 7.45″(W) x 5.15″(D)
Shipping Weight: 8 lbs.
Electrical Input: 12–24 VAC/DC (12-VDC power supply included (PS-12DC1))
Current Draw: less than 190 mA @ 12 VDC | less than 160 mA @ 24 VDC (with relay latched and backlit components on)
Contact Rating: 10 A @ 120 VAC / 24 VDC
Max Switching Voltage: 250 VAC / 30 VDC
Max Switching Current: 15 A
Max Switching Power: 240 W / 2,770 VA
Cellular Network: 4G LTE
Operating Temperature: -15 to 158 °F
Control it your way: App, Text, Voice, Keypad, Wiegand Devices
Product Literature
Security Brands Ascent K2 Spec Sheet
Security Brands Ascent K2 Installation Guide
Access Code List Tracker
Security Brands Two-Year Limited Warranty
