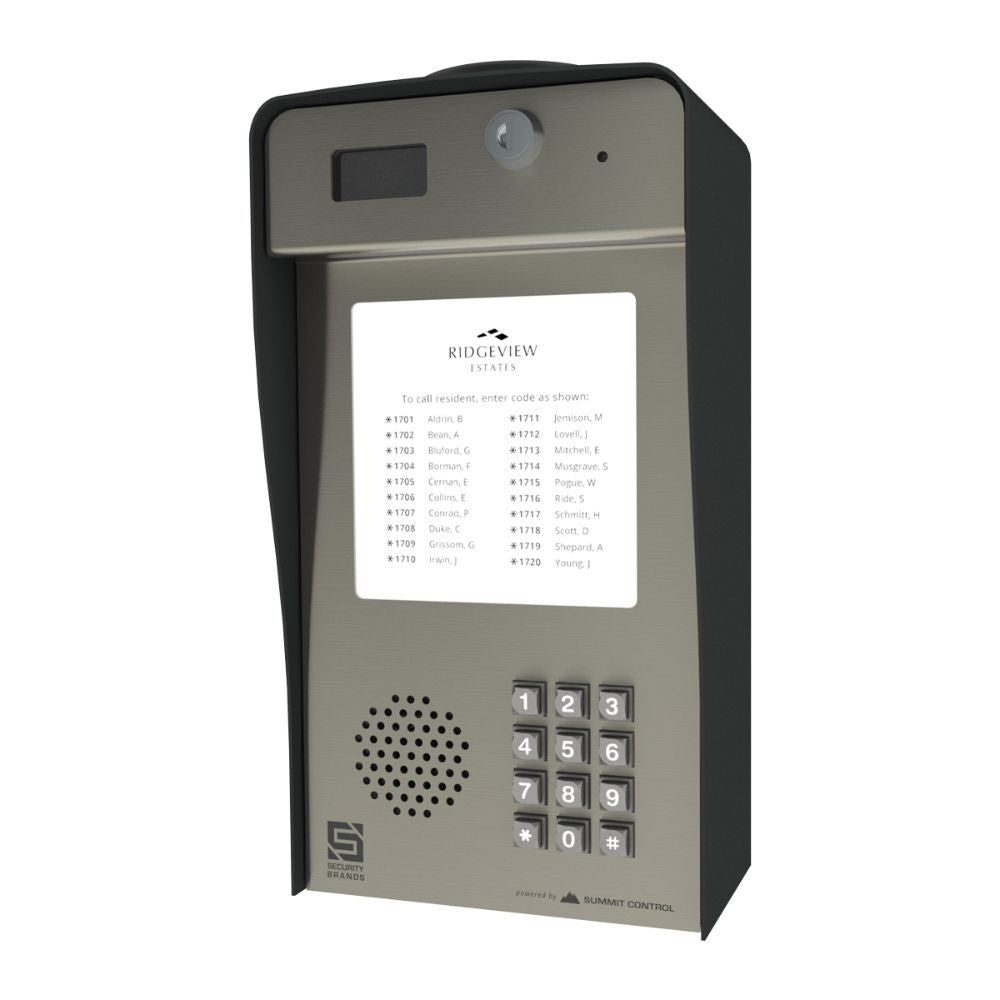

Security Brands Ascent X2 – Cellular Multi-Tenant Entry System with Directory Insert | SEC-16-X2

Security Brands Ascent X2 – Cellular Multi-Tenant Entry System with Directory Insert | SEC-16-X2
Our cellular telephone entry systems are powered by our best-in-class, cloud-based Summit Control software platform.
Ascent X2 is designed for apartments, gated communities, or businesses, and can handle up to 30 residents. It features a LED-backlit directory with user-printable inserts. It is a great choice for replacing aging, antiquated multi-tenant entry systems.
This unit features app, text, and voice control, a keypad, as well as back-to-back calling of up to 3 phone numbers.
Includes

GSM SIM card ready for activation
12-VDC AC/DC adapter (PS-12DC2)

Features

LED-backlit directory panel for user-printed inserts
Full cellular connectivity with auto network selection
HD video capture with IR for low light
Time/use-limited QR-code quick access
Control up to 2 gates/doors
2 relays
2 Wiegand inputs
Up to 10,000 app, text, and voice users* Maximum number is dependent on plan

Up to 10,000 keypad codes*
Rollover calling—up to 3 phone numbers
Broadcast calling—up to 10 phone numbers
Cloud-based access-control management
Push and/or email event and status notifications
Cloud-based access control management
LED downlight and LED-backlit keypad

Other Great Features

Weekly Event Schedule
Audit trail with detailed reports
Durable acrylic directory lens
Stainless-steel faceplate
Powder-coated steel enclosure
Pluggable terminal blocks
Powered by Summit Control­

Made in the USA from Global Materials

Calling Made EasyEnter the directory code listed next to the resident you wish to call and the unit calls.
An Ascent with a ViewEnjoy crisp HD video with IR, giving you clear visual ID while you have a conversation with your guests, even in low light.
Powerfully ExpandableNetwork multiple Ascent units together and manage multiple entries via Summit Control.
Get Connected Every TimeAssign multiple phone numbers to be called in order or simultaneously upon call button press, ensuring a connection is always made.
Manufacturer’s Warranty Period

2-Year Limited Warranty

Technical Specifications

Dimensions: 13.05″(H) x 6.50″(W) x 5.15″(D)
Shipping Weight: 10 lbs.
Electrical Input: 12–24 VAC/DC (12-VDC power supply included (PS-12DC1))
Current Draw: less than 190 mA @ 12 VDC | less than 160 mA @ 24 VDC (with relay latched, LEDs, and backlit keypad on)
Relay Contact Rating: 10 A @ 120 VAC / 24 VDC
Max Switching Voltage: 250 VAC / 30 VDC
Max Switching Current: 15 A
Max Switching Power: 240 W / 2,770 VA
Cellular Network: 4G LTE
Operating Temperature: -15 to 158 °F
Control it your Way: App, Text, Voice, Keypad, Directory Call, Wiegand Devices
Two-Year Limited Warranty
Made in the USA from Global Materials

Important
Always complete a site survey to make sure you have cellular coverage. Our cellular products run on the 4G LTE network. This is a cellular accessory for a gate/door, so an uninterrupted cellular connection cannot be guaranteed. An emergency egress or primary entry mechanism should always be used (transmitter, fire box, mechanical release). Consult with your dealer, distributor, and/or system designer for more information.
Product Literature

Security Brands Ascent X2 Product Guide
Security Brands Ascent X2 Quick Start Guide
Security Brands Ascent X2 Specifications Sheet
Security Brands Ascent X2 Wiring Guide
Security Brands Two-Year Limited Warranty

Directory Template: 5 Residents | 10 Residents | 20 Residents
