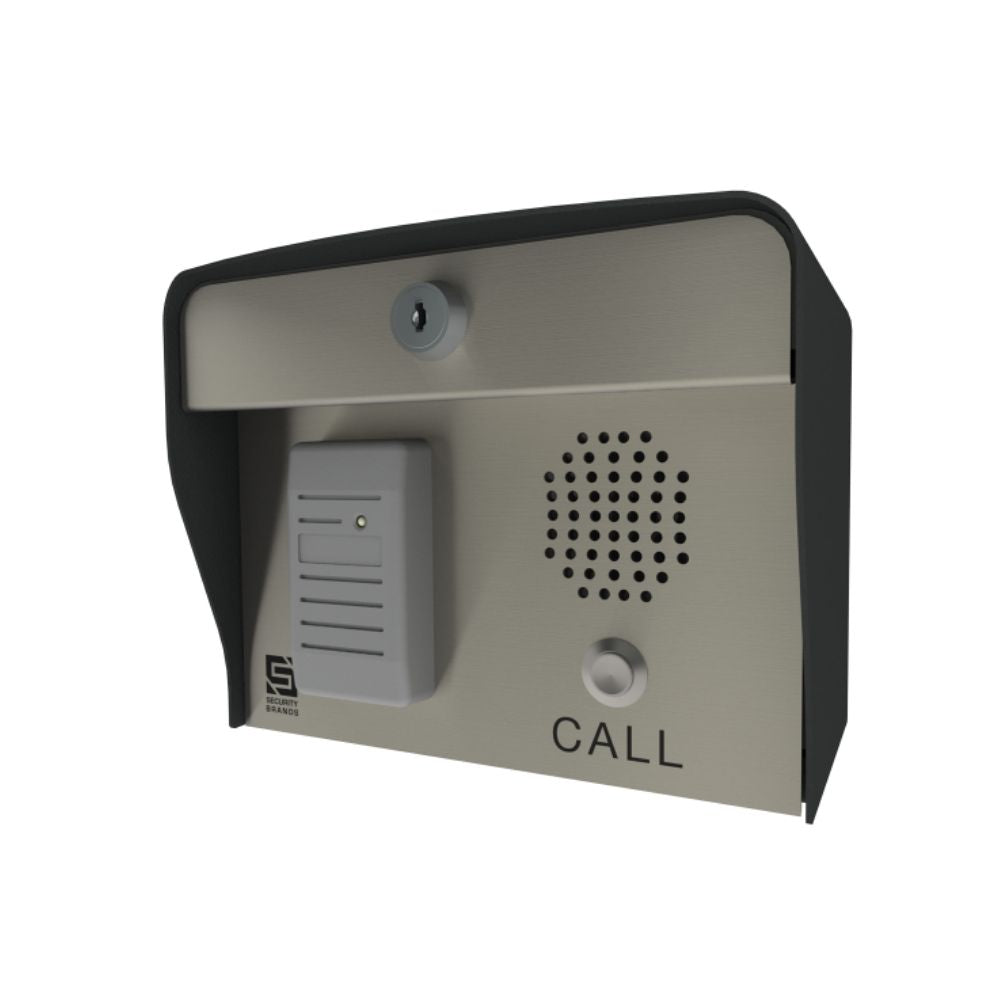

Security Brands Edge E2 HID + Intercom – Smart Card Reader with HID Proximity Reader and Intercom | SEC-27-225HID
$955.99
Security Brands Edge E2 HID + Intercom – Smart Card Reader with HID Proximity Reader and Intercom | SEC-27-225HID
A smart card reader with a HID® ProxPoint® Plus proximity reader, an intercom, 1 Wiegand input, a Bluetooth connection, and a mobile administrator app, Edge offers the simplicity of a stand-alone card reader but adds the power of app-based programming and management.
Program at the unit with the internal PIN pad. Program and manage with the mobile administrator app. Connect to the unit via Bluetooth to update, sync data, and export reports.
Features
HID® ProxPoint® Plus proximity reader
Intercom
Bluetooth connectivity
1 Wiegand input
Control of up to 2 gates/doors
2 event inputs
2 digital inputs
App-based programming and management
SBI Flex™ 64-bit and standard 26-bit Wiegand protocols
Other Great Features
Limited-use codes with use, 7-day, and 365-day restrictions
7-day and 365-day timers (one for each relay)
Holiday timers (one for each relay)
Special-event timers (one for each relay)
Event reports with CSV export
Random code generation
Alarm shunt
Anti-passback
Firmware updates via the app
Stainless-steel faceplate
Powder-coated steel enclosure
Internal PIN pad for programming
Edge Smart Keypad App available on Apple and Android devices.
Two-Year Limited Warranty
Made in the USA from Global Materials
Powerfully Simple AppAll programming and management can be done quickly and securely via the app.
SBI Flex 64-Bit ProtocolOur proprietary Wiegand protocol allows for 4- to 11-digit keypad codes with a 3-digit facility code for maximum flexibility.
Dual 365-Day TimersA separate 365-day timer on each relay gives you the versatility and control you need.
Configurable User PermissionsSet specific user permissions on all keypad codes, transmitters, card readers, and vehicle tag readers independently.
Manufacturer’s Warranty Period
2-Year Limited Warranty
Technical Specifications
Dimensions: 6.30″(H) x 7.44″(W) x 5.25″(D)
Shipping Weight: 6 lbs.
Electrical Input: 12–24 VAC/DC (12-VDC transformer included (PS-12DC1))
Current Draw: less than 111 mA @ 12 VDC | less than 60 mA @ 24 VDC (with one relay latched and LED components on)
Contact Rating: 10 A @ 120 VAC / 24 VDC
Connection: Bluetooth
Operating Temperature: -15 to 158 °F
Control it your way: App, Keypad, Wiegand Devices
Product Literature
Security Brands Edge E2 HID + Intercom Product Guide
Security Brands Edge E2 HID + Intercom Quick Start Guide
Security Brands Edge E2 HID + Intercom Specifications Sheet
Security Brands Edge E2 HID + Intercom List of Supported Android Devices
Security Brands Edge E2 HID + Intercom Wiring Guide
Security Brands Two-Year Limited Warranty
